Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 393
7 Technology applications
7.2 TA "Actuating drive speed"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

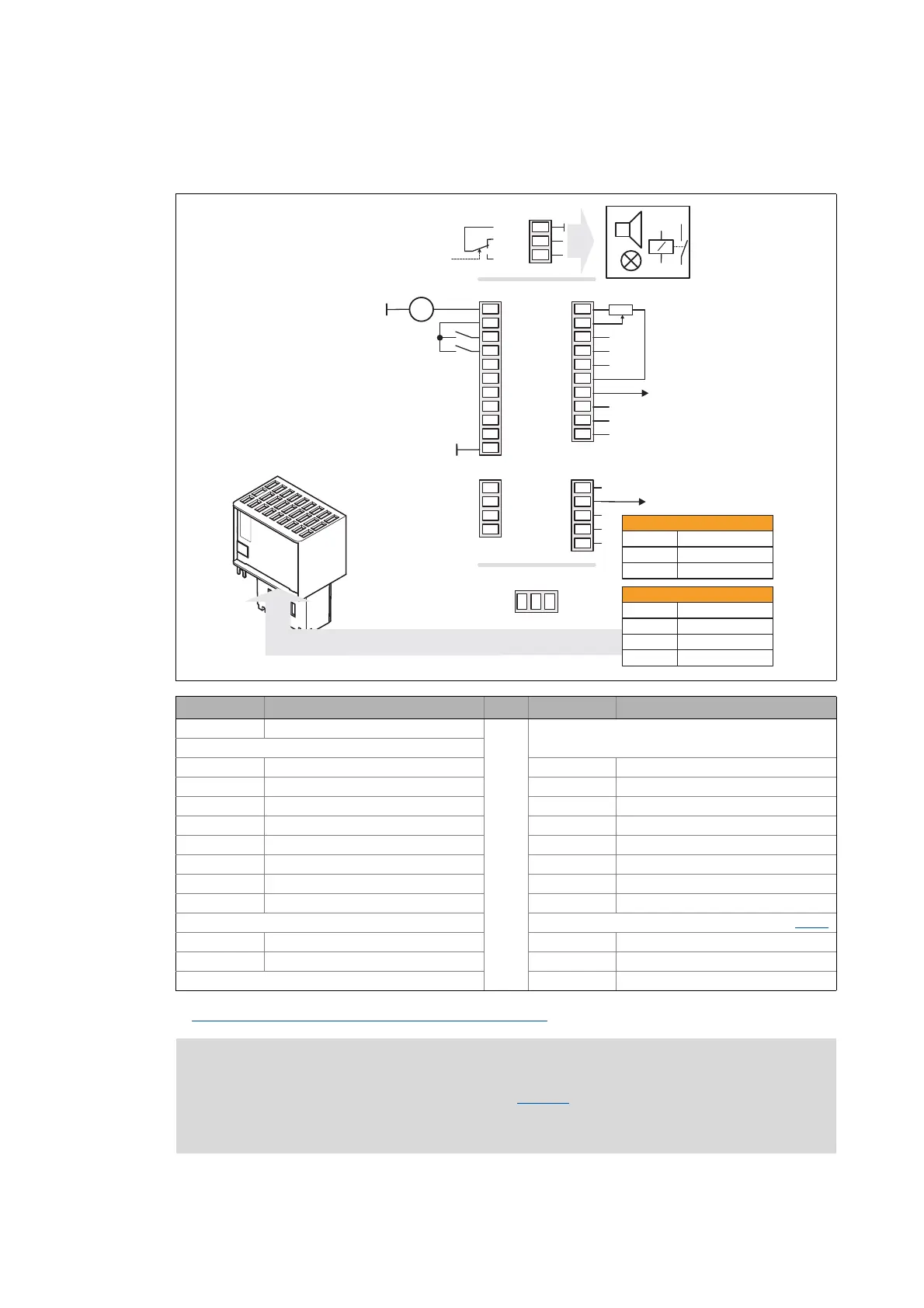

7.2.3.8 MCI
Process data assignment for fieldbus communication ( 394)
Connection Assignment Connection Assignment
X101/NC-NO LA_NCtrl.bDriveFail
X5/RFR LA_NCtrl.bFailReset X3/A1U LA_NCtrl.nAuxSetValue_a *
X5/DI1 LA_NCtrl.bSetQuickStop X3/A1I -
X5/DI2 - X3/A2U -
X5/DI3 - X3/A2I -
X5/DI4 - X3/O1U LA_NCtrl.NMotorSpeedAct_a *
X5/DI5 - X3/O1I -
X5/DI6 - X3/O2U -
X5/DI7 - X3/O2I -
* 10 V ≡ 100 % reference speed (C00011
)
X107/BD1 - X4/DO1 LA_NCtrl.bDriveReady
X107/BD2 - X4/DO2 -
X4/DO3 -
 Note!
• You must set the setpoint arithmetic in C00190 to "1: NOut = NSet + NAdd" so that
the additional speed setpoint selected via the analog input A1U has an additive effect.
• The "manual jog" function via digital terminals is being prepared!
X4
24B 24O
GB DO1
BD2 DO3
GO
BD1 DO2
A2I
AR
COM
A1U
NC
A2U
A1I
NO
X3
DI3
DI2
DI4
DI5
DI6
DI7
GI
24I
DI1
RFR
GA
O1U
O1I
O2U
O2I
X101
24E
CG
CL
CH
X1
+
=
LP_MciIn
wCtrl
wIn2
wIn3...16
DriveControl
MainSetValue
-
LP_MciOut
wState
wOut2
wOut3
DriveControlStatus
MotorSpeedAct
MotorSpeedSet
wOut4...16
-
X5
X107
DriveReady
Actual speed value
Additional
speed setpoint
Controller enable / reset error
Quickstop
External
supply
24 V DC
DriveFail
