8 Basic drive functions (MCK)
8.6 Homing
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

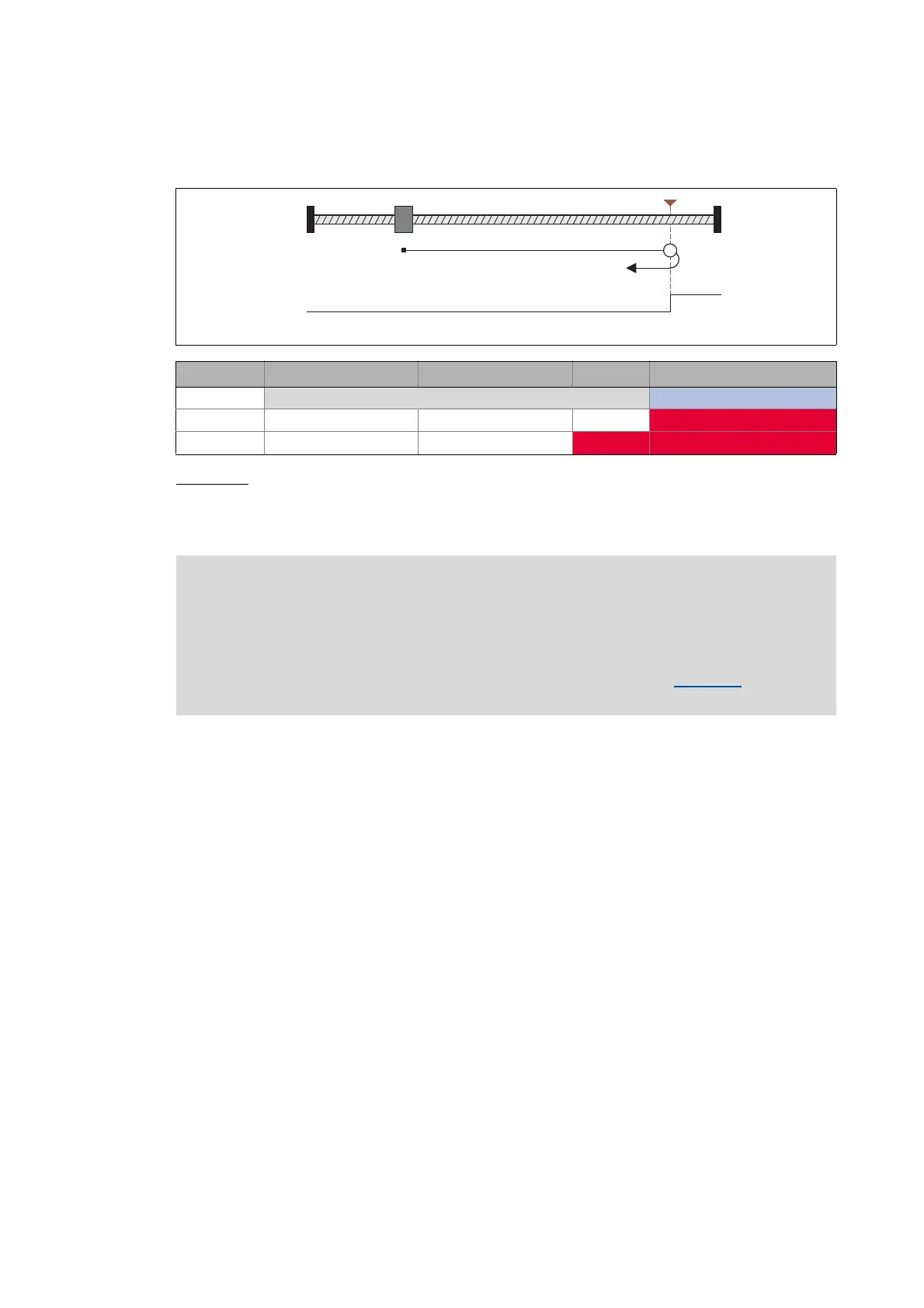

Mode 12: >_Lp
Procedure:
1. Movement in positive direction with start profile data set.
2. Positive edge of the travel range limit switch sets reference.
 Positive travel range limit switch
Mode 12 > Lp Offset path Sequence profile (optional)
Start speed Profile speed
Lp Inactive Inactive Inactive
Active
Ln Inactive Inactive
Active Active
 Note!
The load machine can also leave the travel range limit switch. There follows a return to
the home position that was set with the positive edge of the travel range limit switch.
• It is possible that, as a result, the machine will remain on an operated limit switch.
• It is therefore recommended that a home value offset be set in C01227/1
in order to
release the operated limit switch.
