8 Basic drive functions (MCK)
8.6 Homing
566
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

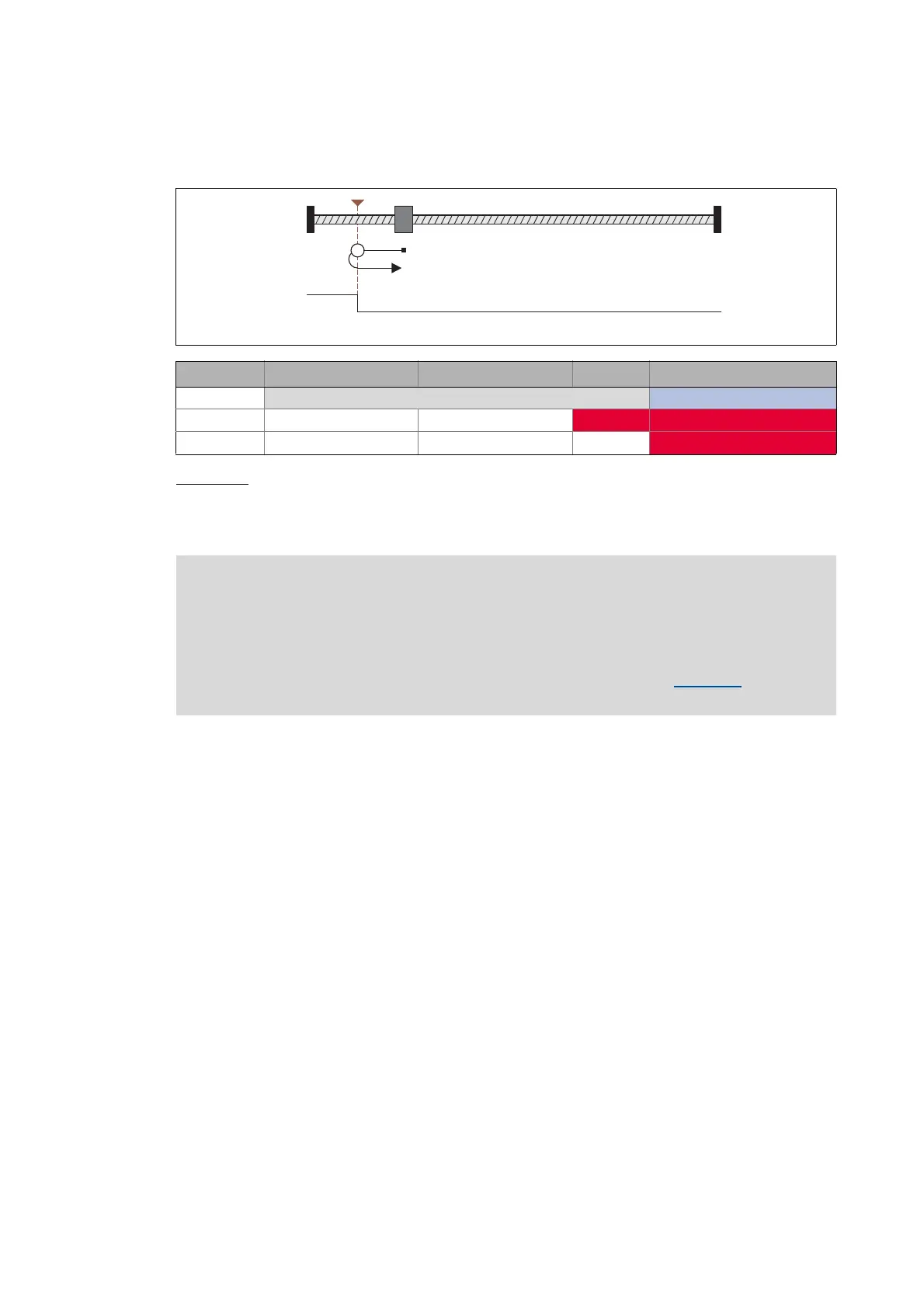

Mode 13: <_Ln
Procedure:
1. Movement in negative direction with start profile data set.
2. Positive edge of the travel range limit switch sets reference.
 Negative travel range limit switch
Mode 13 Set reference Ln Offset path Sequence profile (optional)
Start speed Profile speed
Lp Inactive Inactive
Active Active
Ln Inactive Inactive Inactive
Active
 Note!
The load machine can also leave the travel range limit switch. There follows a return to
the home position that was set with the positive edge of the travel range limit switch.
• It is possible that, as a result, the machine will remain on an operated limit switch.
• It is therefore recommended that a home value offset be set in C01227/1
in order to
release the operated limit switch.
