3 Commissioning
3.8 Commissioning of the "Table positioning" technology application
74
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

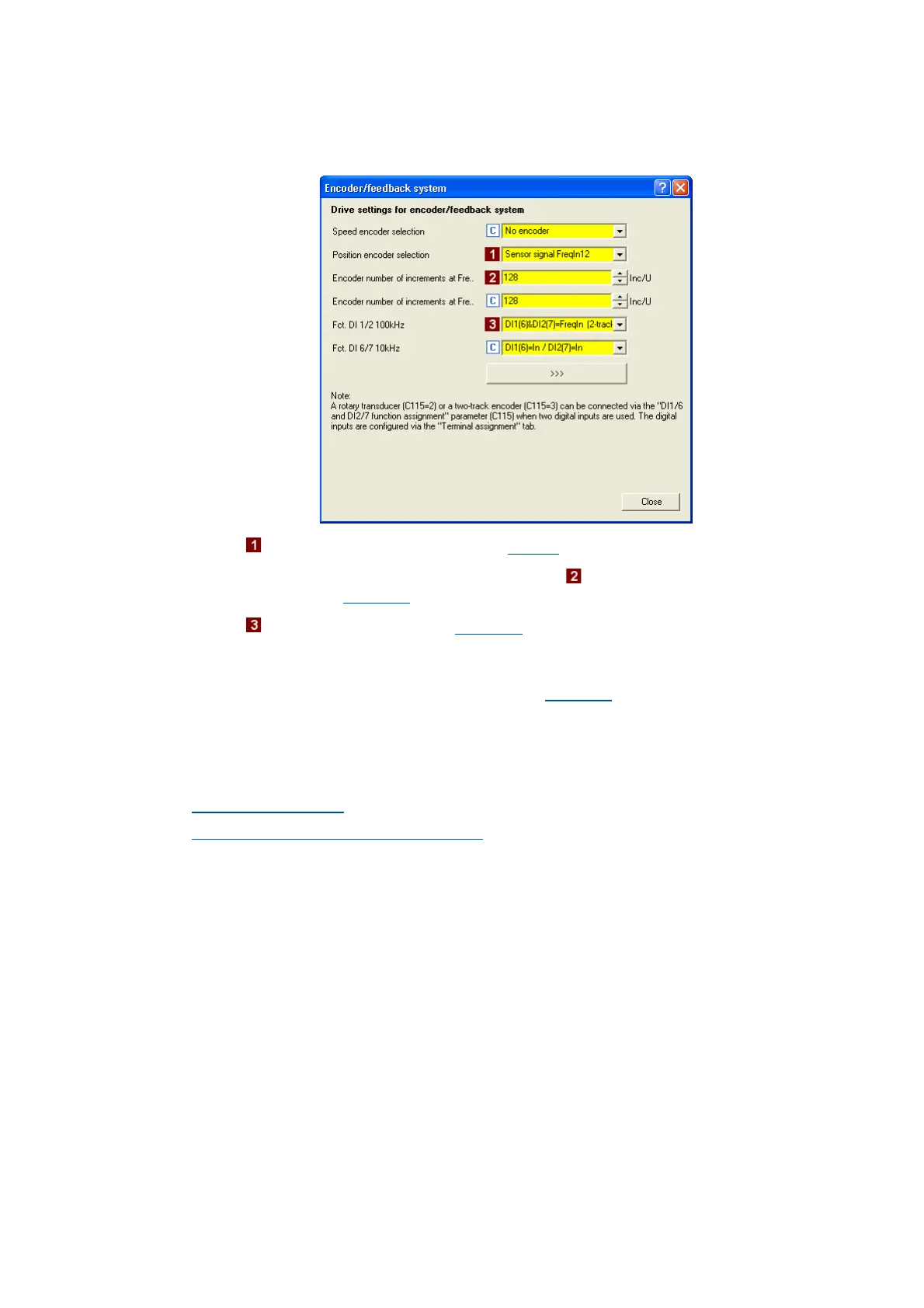

The Encoder/Feedback system parameterisation dialog will be shown:
3. In the Position encoder selection list field (C00490
), select "Encoder signal FreqIn12".
4. Set the number of position encoder increments in the Number of encoder increments at
FreqIn12 input field (C00420/1
).
5. In the Fct. DI 1/2 100kHz list field (C00115/1
), select "DI1(6)&DI2(7)=FreqIn (2-track)".
This selection ensures that the digital DI1 and DI2 input terminals are configured as frequency
inputs.
6. Adapt the proportional gain, Kp position controller (C00115/1
), if necessary. This parameter can
be found on the second page of the dialog and can be reached via the >>> button.
7. Click the Close button to close the parameterisation dialog again.
Related topics:
Digital input terminals
( 323)
Using DI1(6) and DI2(7) as frequency inputs
( 327)
