Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 736 en 9 - 45

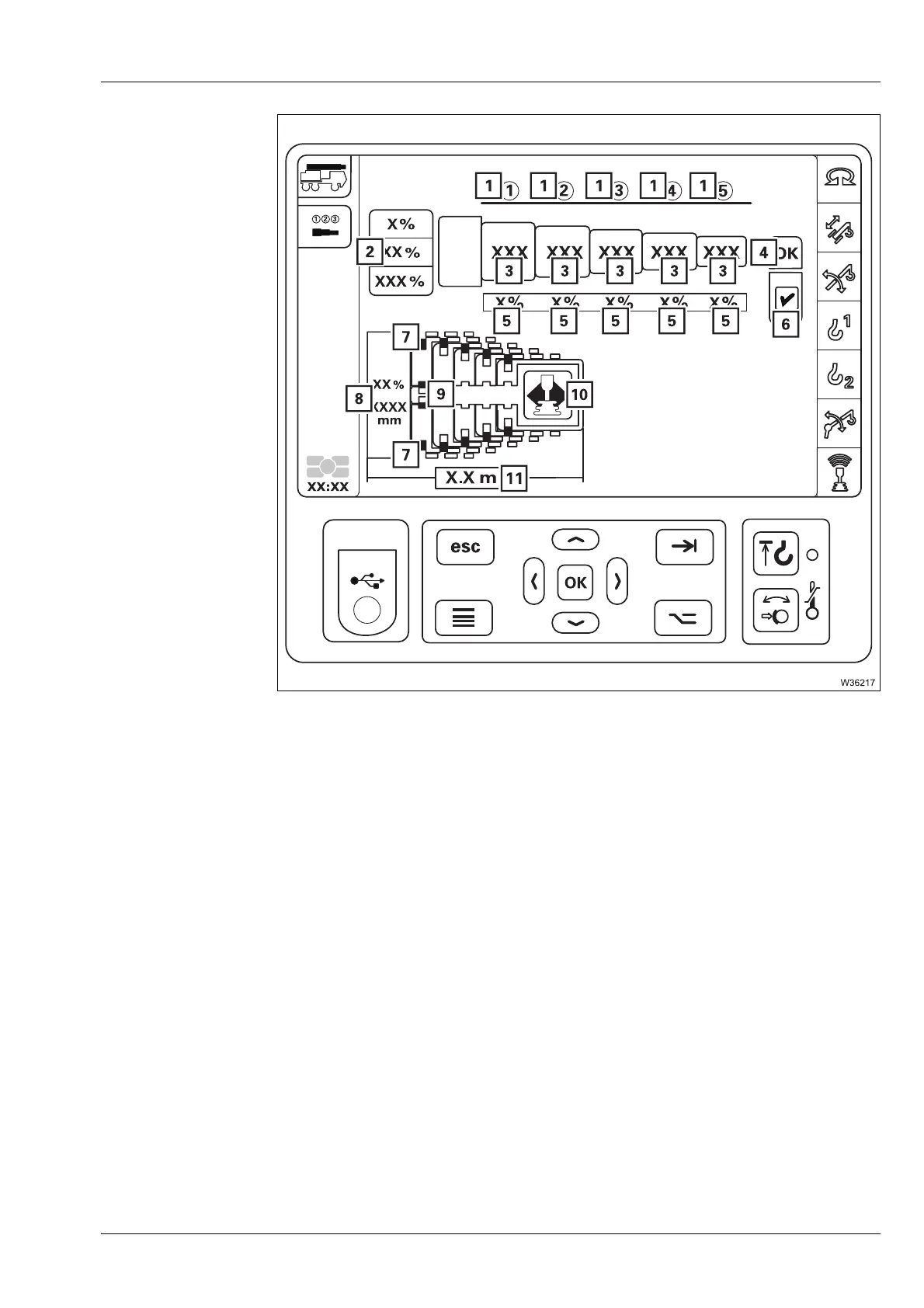

GMK4090
xx.xx.xxxx
Telescoping semi-
automation menu
s
1 Telescopic sections display à p. 9 - 122
2 Pre-selection for all telescopic sections
à p. 9 - 122
3 Pre-selection individual telescopic sections
à p. 9 - 123
4 Confirm pre-selection
à p. 9 - 123
5 Current telescope status display
à p. 9 - 122
6 Telescoping permitted display
Telescoping not permitted display
à p. 9 - 123
7 Locking status telescopic section display
à p. 9 - 121
8 Telescoping cylinder length display
à p. 9 - 122
9 Locking status telescoping cylinder display
à p. 9 - 121
10 Teleautomation direction display
à p. 9 - 123
11 Main boom length display
à p. 9 - 122
