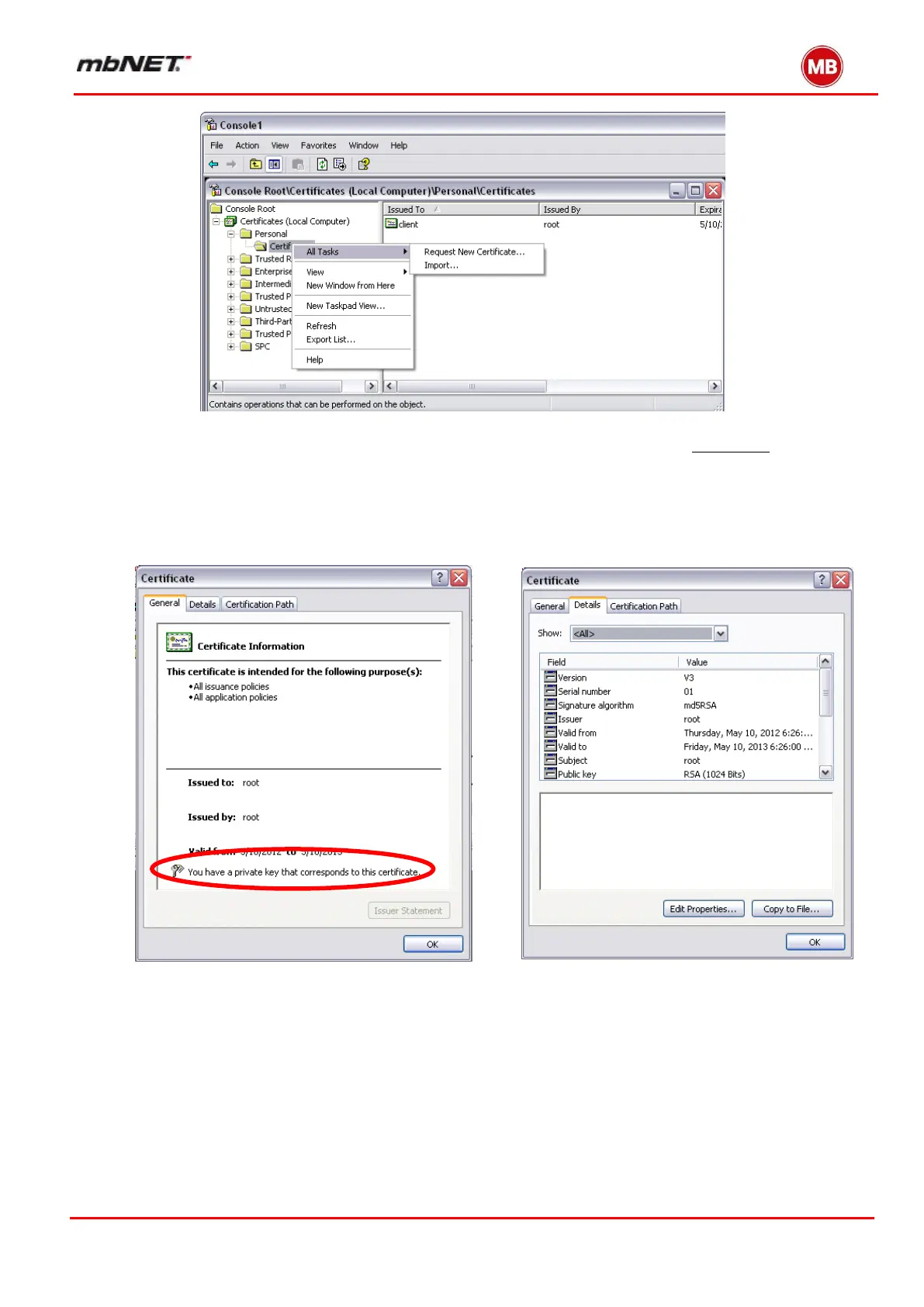

Double-clicking on the relevant certificate displays its properties. In the “General” tab you can

check, amongst other things, which CA issued the certificate, how long it is valid for and whether

you have a private key for it.

This is very important when using certificates for web server publishing.

There is more information about the issued certificate in the "Details" tab.
