Page 93 of 237

Version: 5.1.6 – June 4

, 2018

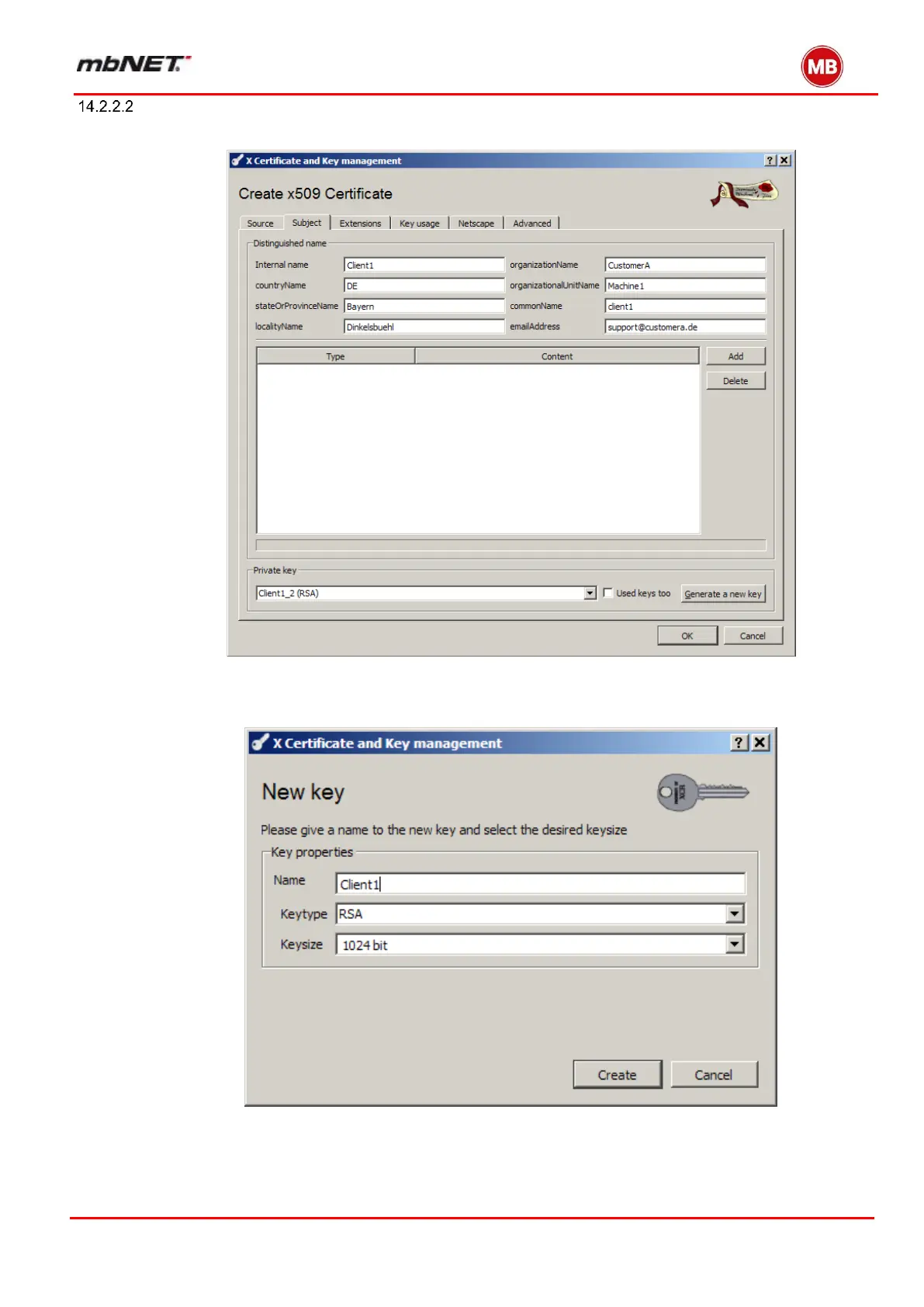

Client certificate subject

Once again, assign the client certificate details, from internal name through email address.

Then generate a key for the client certificate. It is recommended that the key should be the same size as the one for

the root certificate.
