Page 200 of 237
Version: 5.1.6 – June 4
th
, 2019

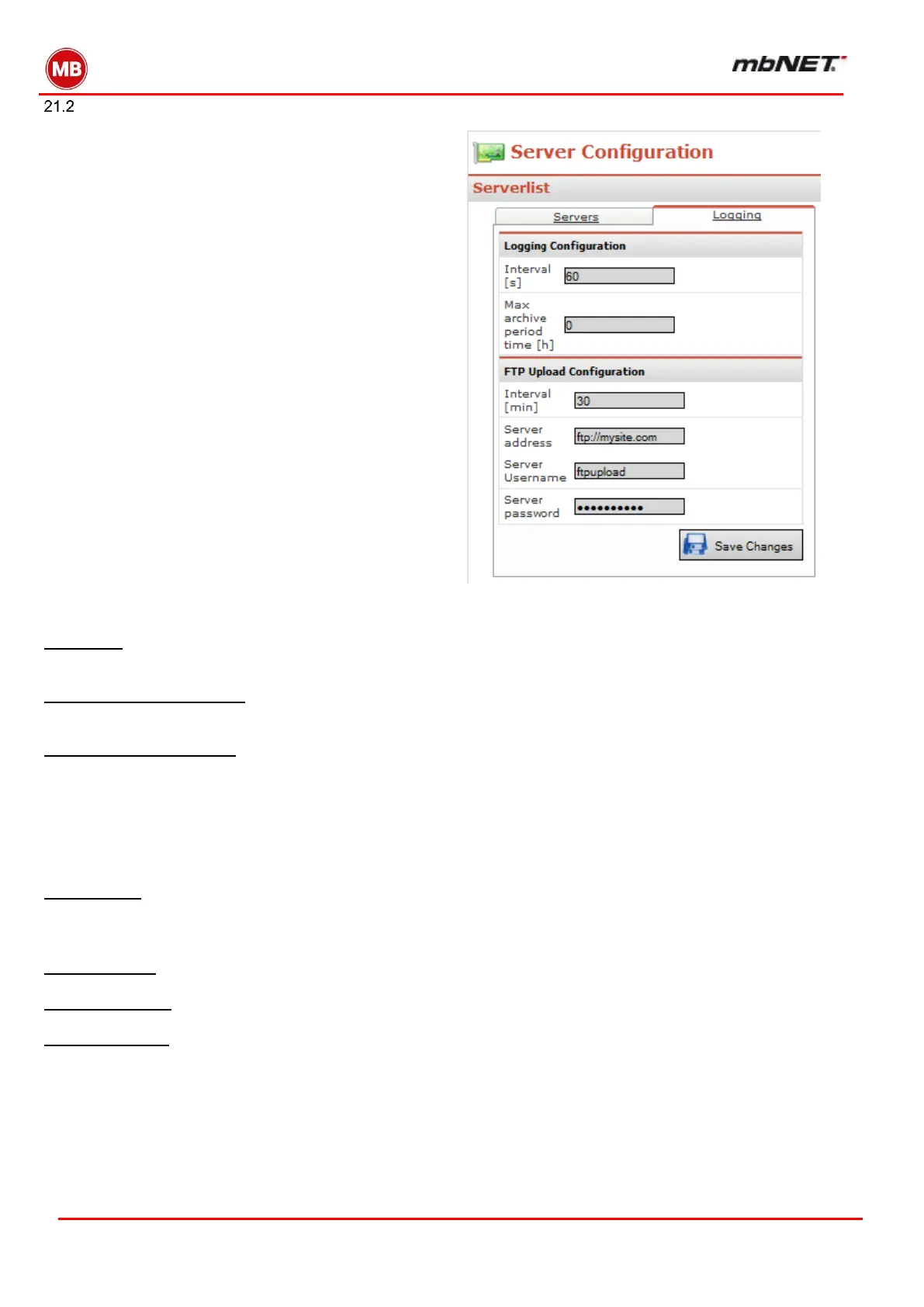

Configuring the logging function
The logging function can be configured on the second tab
under Server Configuration. The logging function applies to
all PLC connections.
A storage medium must be inserted into the USB socket for
the logging function. This can be e.g. a USB stick.
Interval [s]
The tags are written to the storage medium at the specified interval.
Max archive period time [h]
The log file is archived and a new log file is started at the latest after the time in seconds set here.
FTP Upload Configuration
The logged tags can also be archived on an FTP server.
The following settings are required for this.
The “Maximum” firewall security setting does not permit the agreement of a dynamic communication port as required
during FTP communication between the client and server. The router firewall must therefore be set to “Normal” in
this case.
Interval [min]
The log file is compressed and loaded onto the FTP server at the specified interval. A copy of the log file also re-
mains on the storage medium (compressed).
Server address Enter the address of the FTP server here.
Server Username Enter the username for authentication on the FTP server here
.
Server password Enter the password for authentication on the FTP server here.
Log files are in CSV format. The current file is always called logfile.log and is stored in the subdirectory \log-
files\ on the USB stick. Archived files use the following naming convention: log-
file.log.[Date(yyyymmdd)]_[Time(hhmmssms3)].gzip
