Page 39 of 237

Version: 5.1.6 – June 4

, 2018

System > Settings

Before you configure the mbNET industrial router specifically for your application, you should first make certain basic

settings. To do this, proceed as follows:

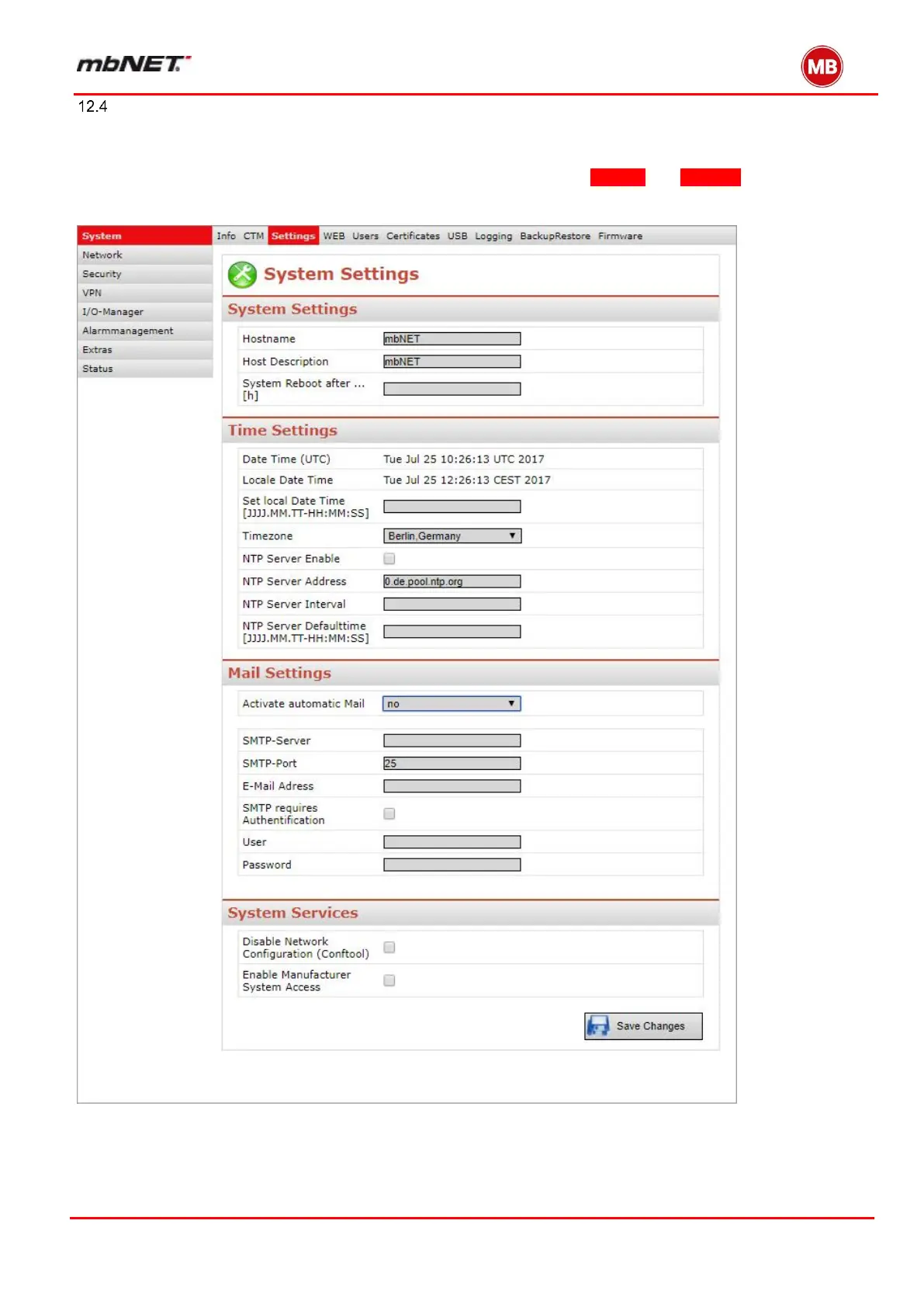

On the navigation bar at the top bar on the web interface home page, click System and Settings. This will display

the system settings screen shown below. Now proceed as described on the following pages.

You can find the description on the next page.
