Page 149 of 237

Version: 5.1.6 – June 4

, 2018

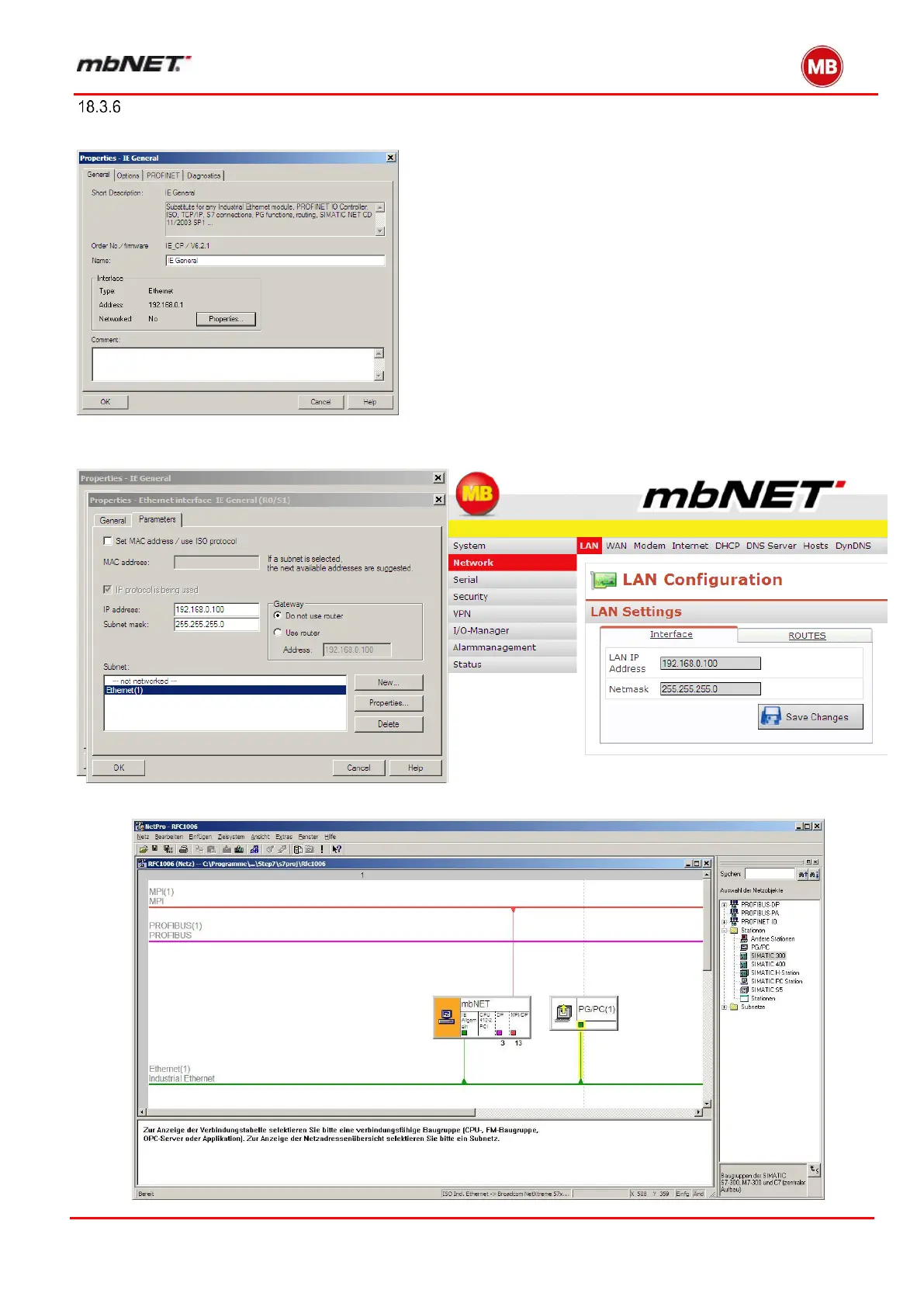

Configure mbNET PC station

To configure this “PC Station” (in this case: mbNET), double-click on “IE General”.

Click on “Properties” to set the interface parameters. Enter the IP address and subnet mask here.

The IP address and subnet mask must be the same as those entered in the mbNET LAN settings.

Now the main window of „NETPro“ should look like this.
