Each input can be separately configured. Select the input to be configured by clicking the
corresponding tab.
The input is enabled by checking the box. This is how you determine whether the input in
question is to be enabled (“activated”).
Set the input level for the industrial router in this drop-down field. The available signal lev-
els are 1 and 0.
There are three possible actions:
□ Email
□ SMS (only available at mbNET variants with modem!)
□ System Reboot
□ Internet-SMS
Enter the text to be sent to the specified email address in this input field.
The following special characters are permitted in the text:
Ä Ü Ö , ; . : - _ # + * ~ ^ ° ! ( ) = ? § $ % & / < >
Enter the email address or phone number* to which the industrial router should send the
text when the input is activated and the relevant signal level has resulted in the action be-
ing initiated.
* Up to three mobile phone numbers are possible - separated by semicolon or comma.
You can read off the current state at the inputs via the LED icons at the bottom of the
screen. Gray indicates state 0, green indicates state 1.
Multiplex inputs
Brief description
There are four digital inputs on the mbNET. An action assignment (number) can be communicated
serially via three of these inputs (2-4), i.e. one input is STROBE, one is IMPULS_x1 and one is
IMPULS_1x. The pulse at IMPULS_x1 (one digit) and IMPULS_1x (tens digit) can be counted with
a rising edge at STROBE. The action is executed in accordance with the entered action with a
falling edge at STROBE.

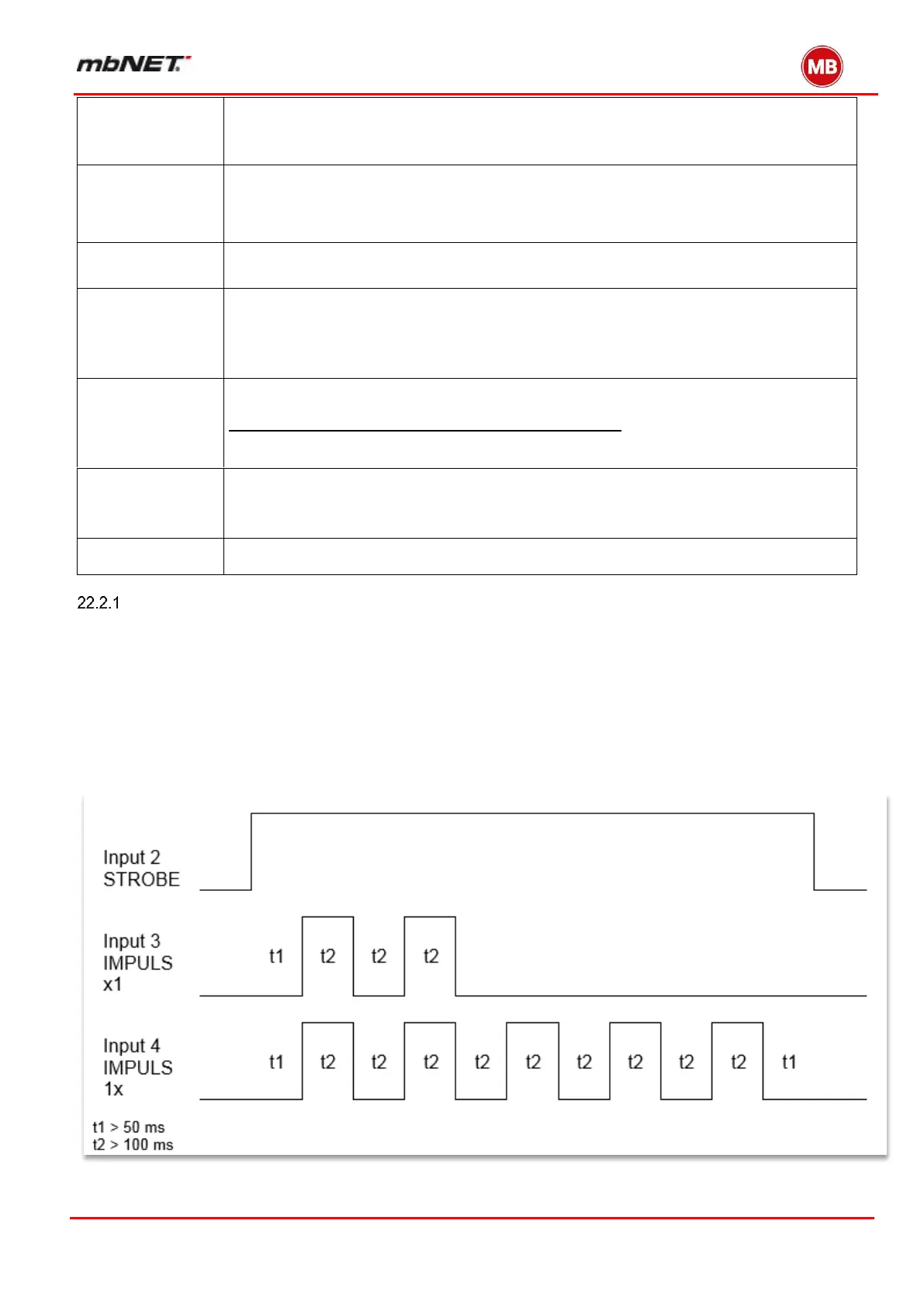

Graph
The action 52 is initiated in the sample graph.
