Page 19 of 237

Version: 5.1.6 – June 4

, 2018

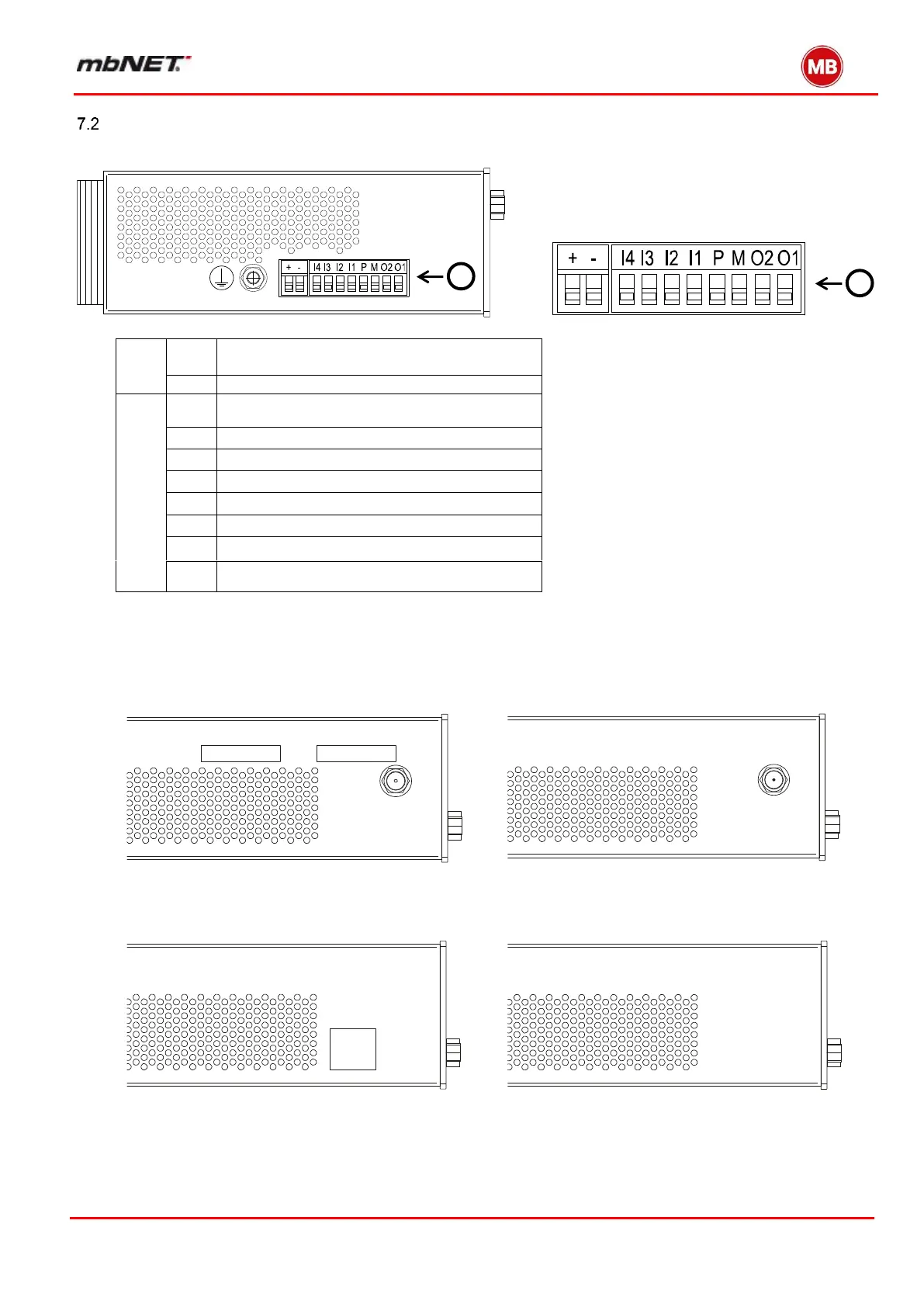

Top, bottom and back panel views

Top view

Bottom view

MDH814, MDH819, MDH834, MDH849,

MDH850, MDH855, MDH858, MDH859

MDH811, MDH831, MDH841

MDH810, MDH815, MDH830

MDH816, MDH835

Power supply connection

10-30V DC

0V DC connection

Digital input I4 (10-30V)

Digital input I3 (10-30V)

Digital input I2 (10-30V)

Digital input I1 (10-30V)

Fuse-protection 10-30V DC

0V DC connection

Digital output A2

Digital output A1

X1 | X2

SIM 1

SIM 2

SIM card slots

Antenna

Connection

(female)

Antenna

Connection

(male)

RJ11

Connection
