Routing

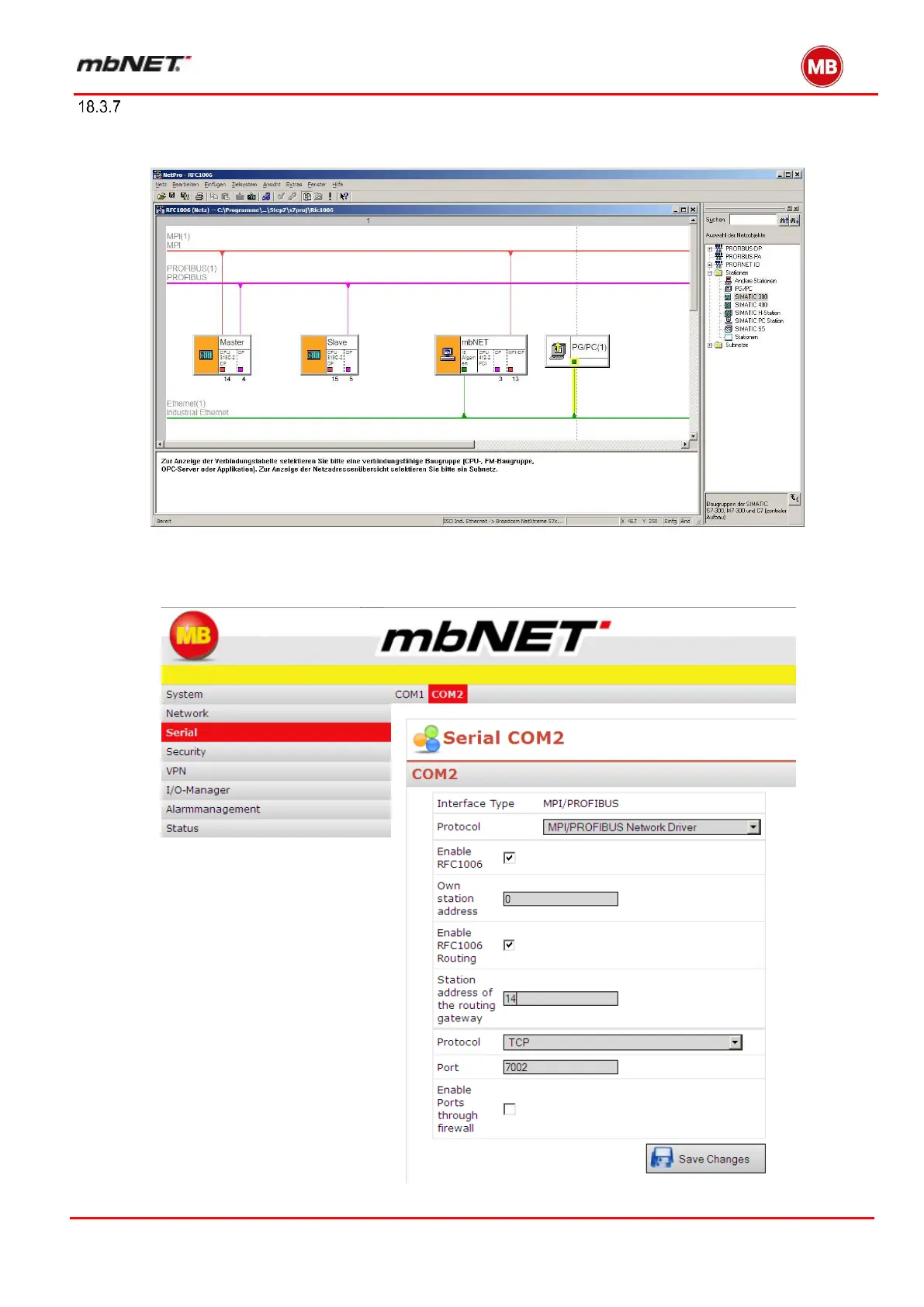

For the station to be able to contact a subscriber from another (slave) network (see picture), you need to make the

following settings.

In the mbNET settings, enable RFC1006 routing and enter the station address of the (master) routing gateway.
