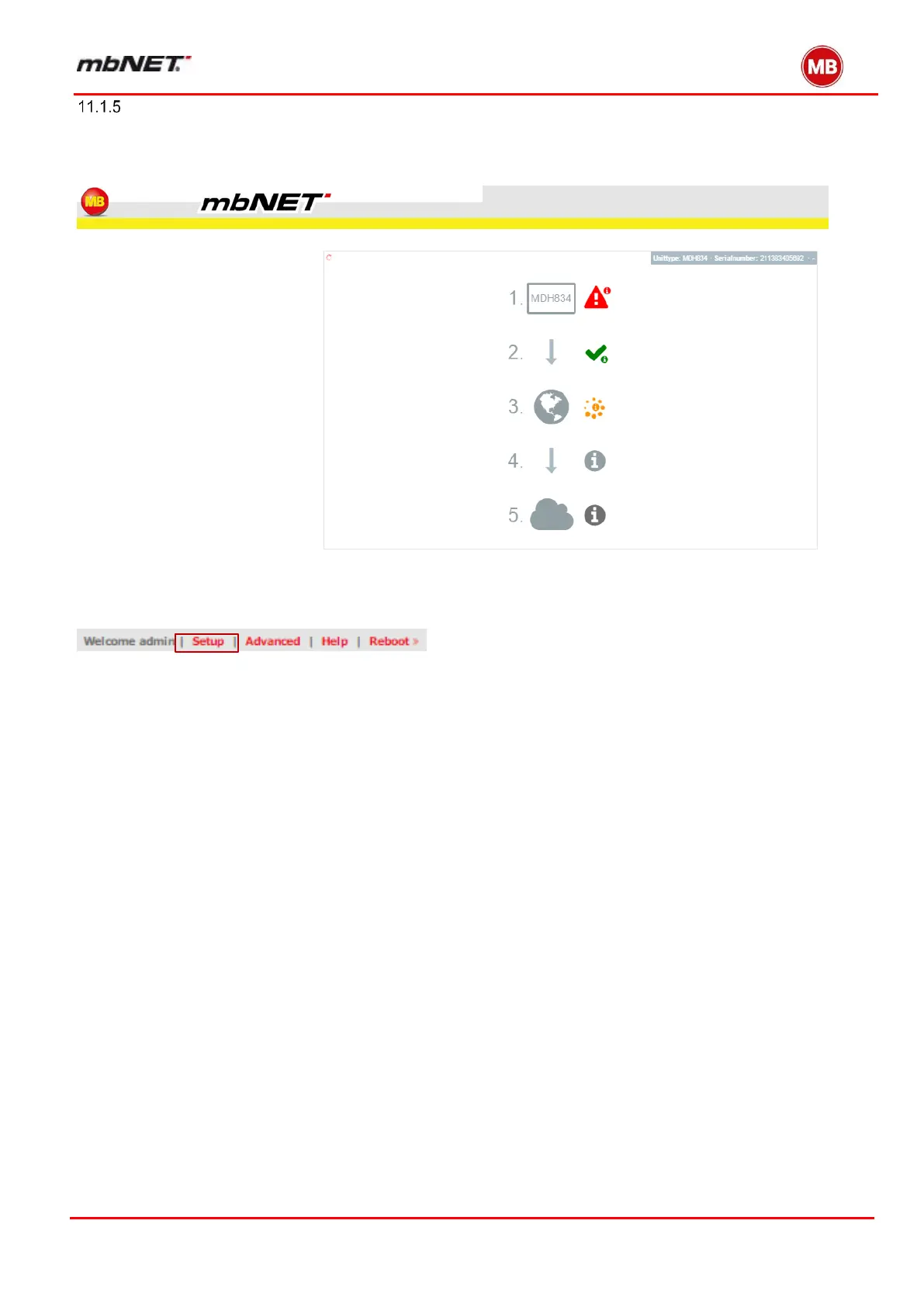

Start screen of the mbNET

If you search for your mbNET in your web browser you get this screen. Here you can see the connection or network-

problems of the mbNET. To see more detailed information click on the “I”.

Click on “Setup” to go to the configuration menu.
