Connecting and configuring the router
Before you begin:
The router should be connected to a suitable power source, and the Power and Ready LEDs should be solid
green.

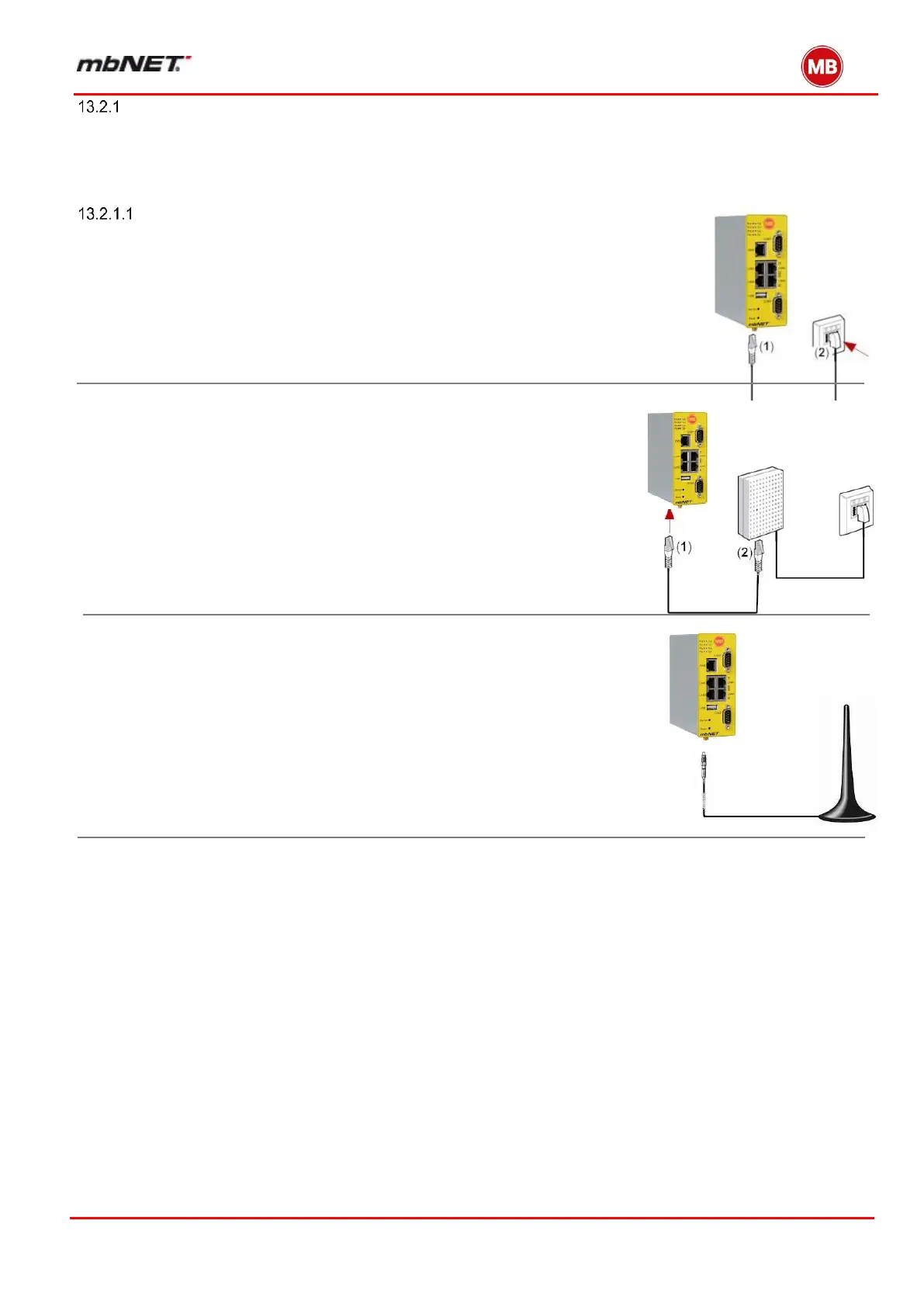

Connecting the router
Analog connection (applies to device models MDH xx0)
Connect TAE adapter to analog cable.
Plug one end of the supplied cable into the RJ12 jack (1) on the bottom of the
router, and the other end into the TAE jack (2).
ISDN connection
(applies to device models MDH xx2)
With an existing ISDN connection, plug one end of the ISDN ca-
ble into the jack (1) on the bottom of the router and the other end
into the (2) NTBA.
GSM connection:
(applies to device models MDH xx3 and MDH xx4)
With an existing GSM connection, plug the end of the GSM antenna
cable into the jack on the bottom of the router.
