Configuring an mbNET industrial router for VPN connection to another mbNET router (router –
router) (see section 9.7)
Configuring the industrial router for connection over the telephone network

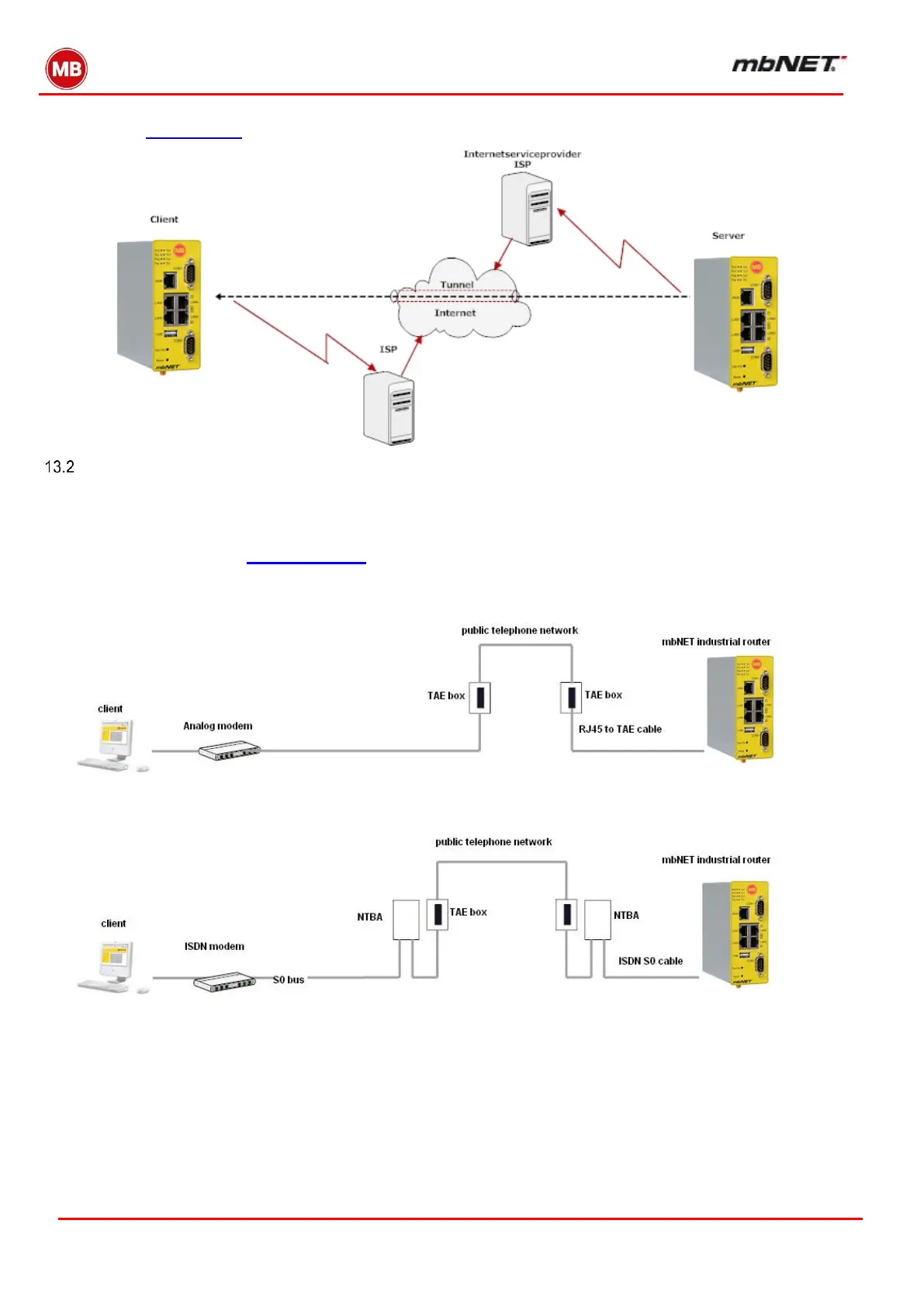

The following diagram shows how to connect the industrial router to a client over the public telephone
network.
Using this type of connection, the industrial router can be accessed over the telephone network via its
serial interfaces (see Serial Interfaces) and LAN interface.
In the following example, the client is a PC with a modem connection.
PPP-Client-IP-address
IP: 192.168.0.102
PPP-Server IP-address
192.168.0.101
