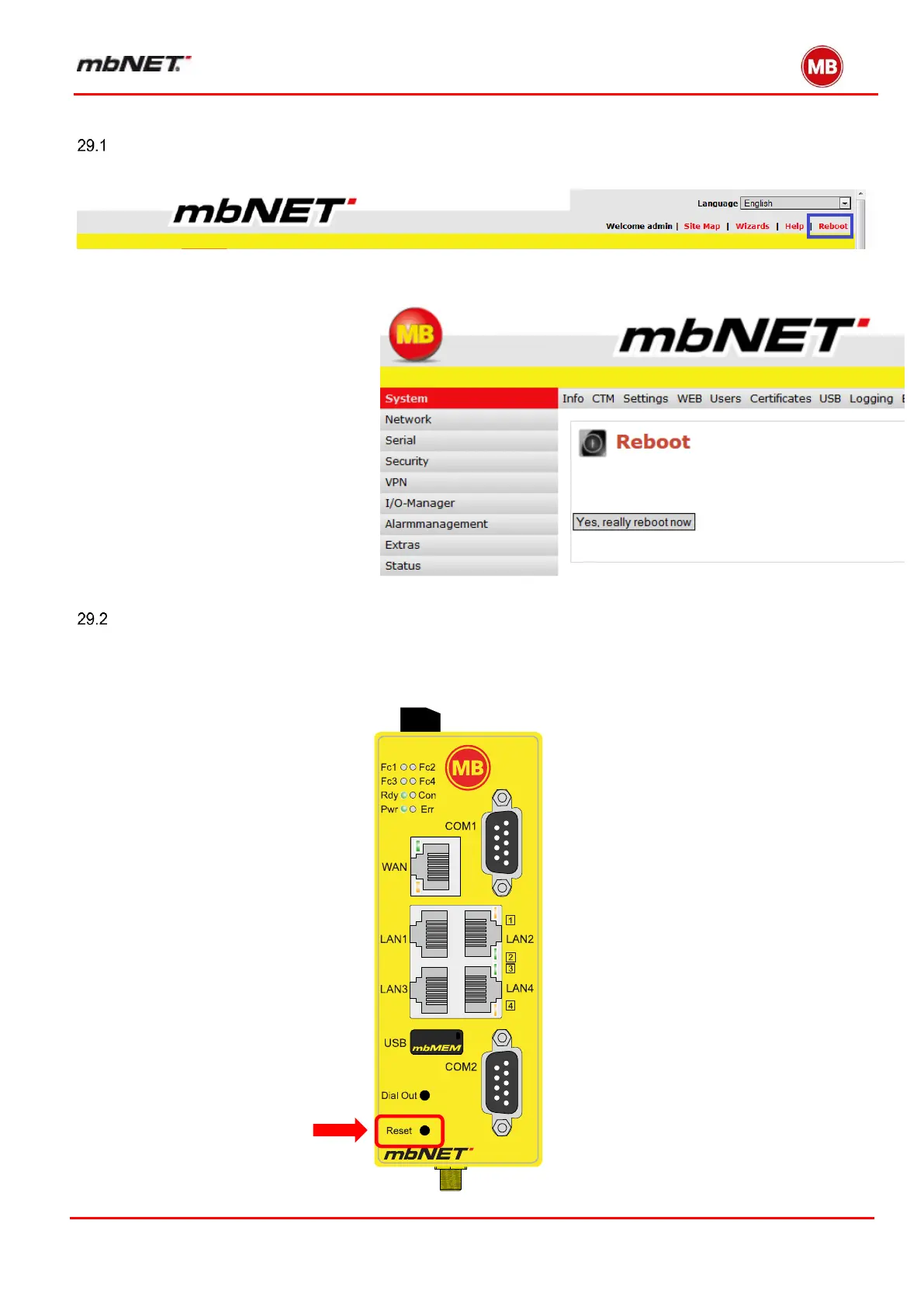

29. Restart the mbNET router

Via webinterface

Click on „Restart“ on top right of the page screen.

Now click on auf den Button „Yes, really reboot now“.

The restart process takes about 2

minutes.

Via reset button

Press the „Reset“ button on the mbNET.

This initiates the booting process. The restart is complete, when both LED „Rdy“ and „Pwr“ illuminate.

Note:

The „Reset“ Button does not actually

Reset the router. It just reboots it.
