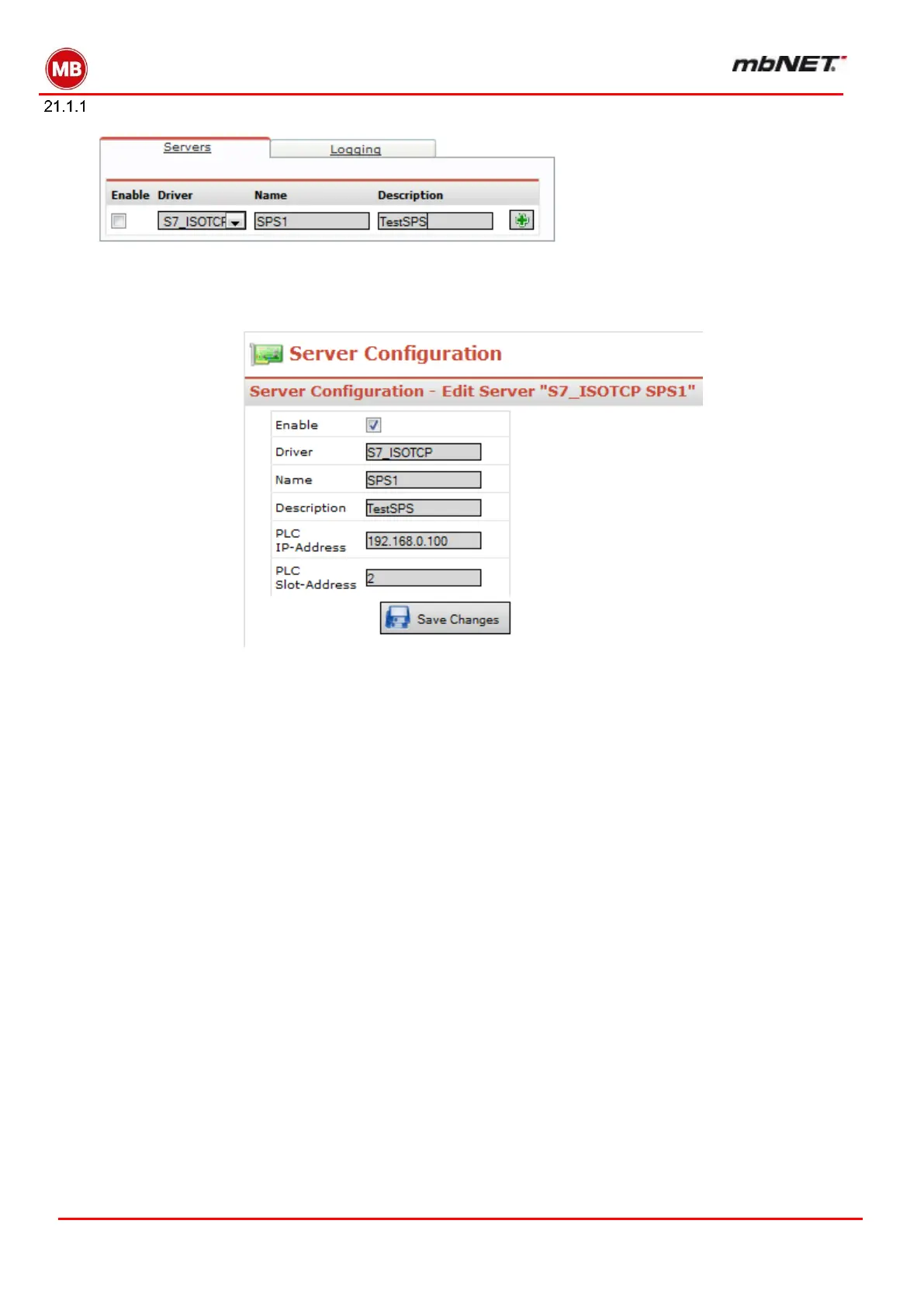

Creating the PLC connection

The “Name” field must not contain any control characters or spaces. Click the „+“ button after entering the

data.

If using the MPI/PROFIBUS interface, the IP of the router’s LAN interface must be entered in the PLC IP ad-

dress field. Otherwise the IP address of the PLC. The slot address is the bus address with MPI/PROFIBUS com-

munication and, in the case of direct Ethernet communication, the slot space of the PLC on the rack (generally

two).
