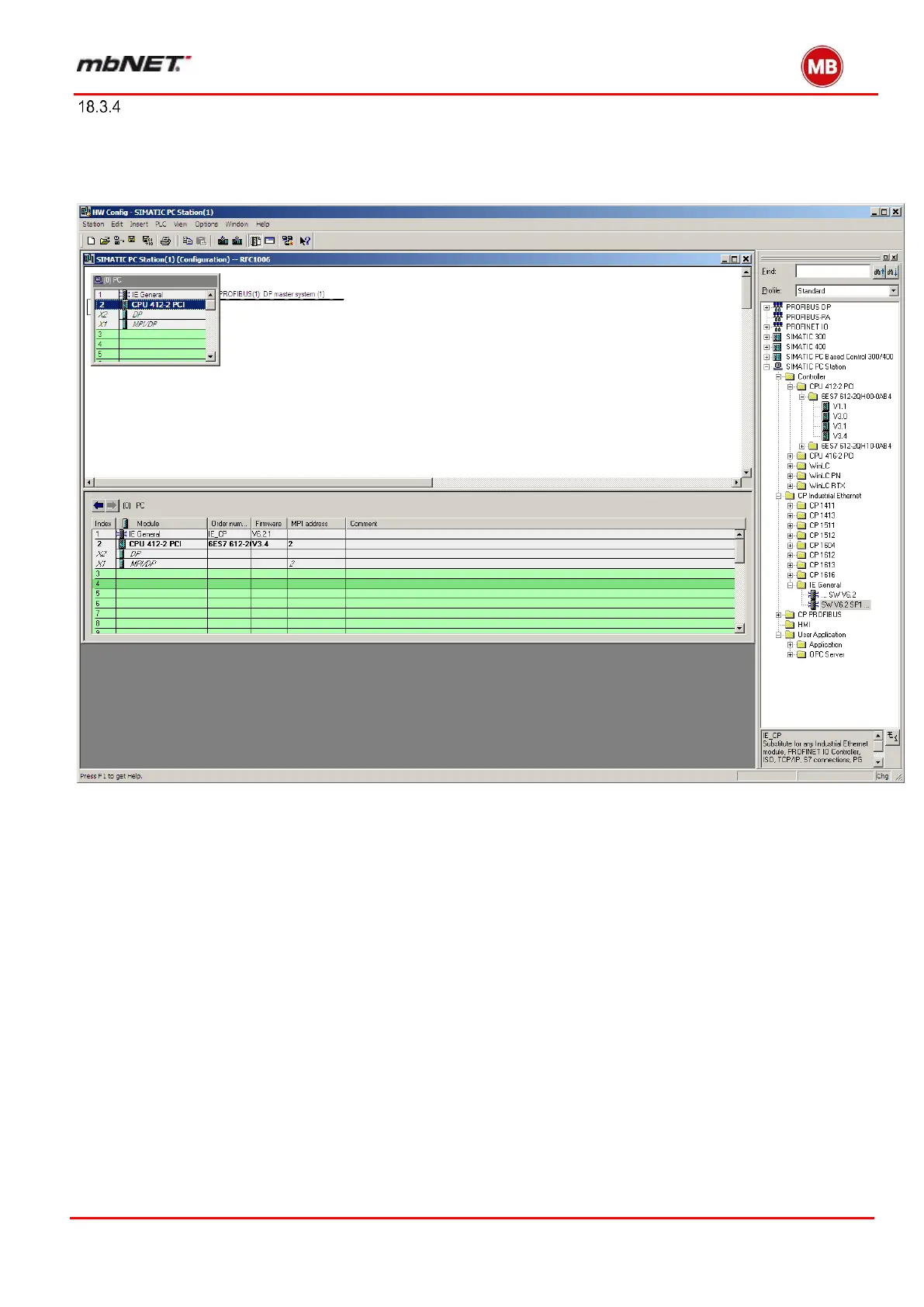

Configure PC station

This “PC Station” requires the integration of a “CPU 412-2 PCI (6ES7 612-2QH00-0AB4 V3.4)”, found by selecting

“Simatic PC Station -> Controller -> CPU412-2 PCI” and a “IE_CP V6.2.1 (IE General)” found by selecting “Simatic PC

Station -> CP-Industrial Ethernet -> IE General-> IE_CP SW V6.2 SP1”.

The finished station must now be saved, and appears in “NETPro”.

The MPI/DP address must match the settings entered in “own station address” on the mbNET.
