Page 204 of 237

Version: 5.1.6 – June 4

, 2019

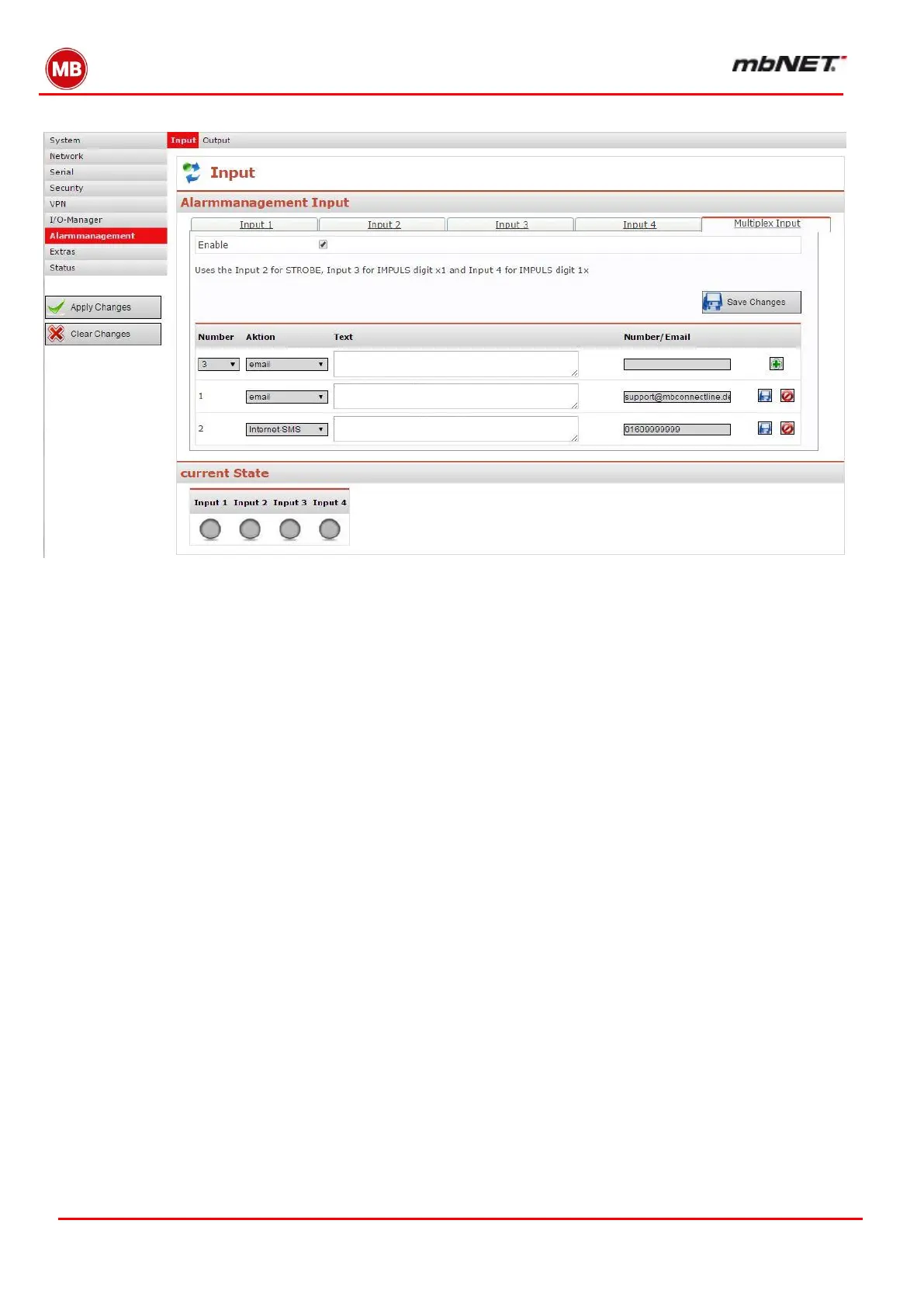

Action table

The action number is defined in the Number drop-down field. There are different actions available

depending on device model. The “E-Mail” function is available with all devices, the “SMS” option is

available with devices with a mobile broadband modem.

This is an e-mail

This is an Internet SMS
