Direct Fuel Injection
Page 3B-36 90-8M0050731 MAY 2011

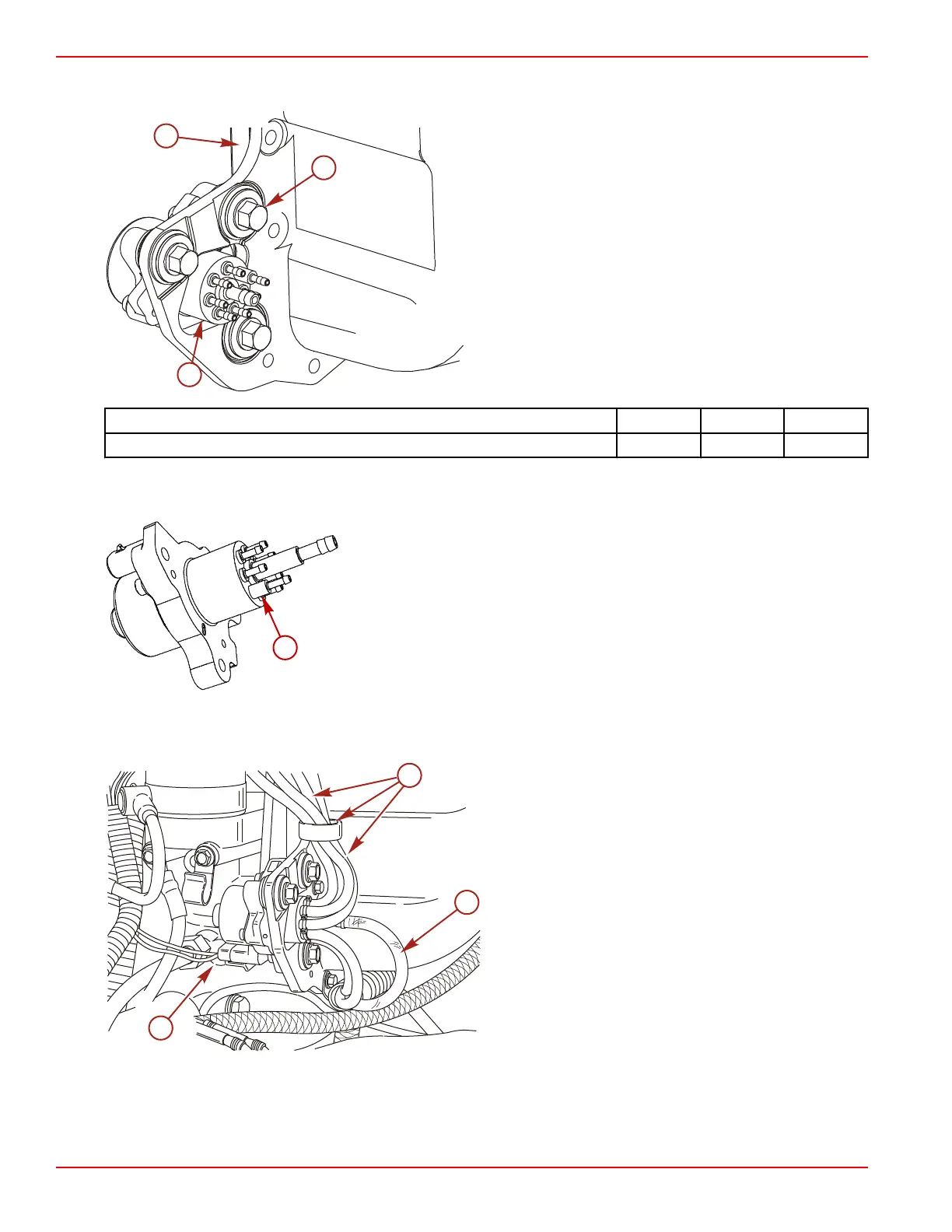

10. Install the oil pump onto the air plenum assembly. Secure the pump with three M8 x 30 screws. Tighten the screws to the
specified torque.
a - Air plenum
b - Grommet, bushing, and screw (3 each)
c - Oil pump
Description Nm lb‑in. lb‑ft
Screw (M8 x 30) (3) 16 142
11. Install the air compressor oil line hose onto the oil pump air compressor discharge port and secure with a cable tie.
IMPORTANT: Verify the oil line to the air compressor is connected to the correct oil pump discharge port. The air compressor
receives less oil than the engine.
a - Oil pump discharge port for the air compressor
12. Install the oil hoses to the oil pump and secure with cable ties.
13. Connect the engine harness to the oil pump connector.
14. Install the oil inlet hose to the oil pump and secure with a cable tie.
a - Oil hoses
b - Oil inlet hose
c - Oil pump connector
