Mercury 200 OptiMax Jet Drive Service Manual

Direct Fuel Injection
90-8M0050731 MAY 2011 Page 3B-81

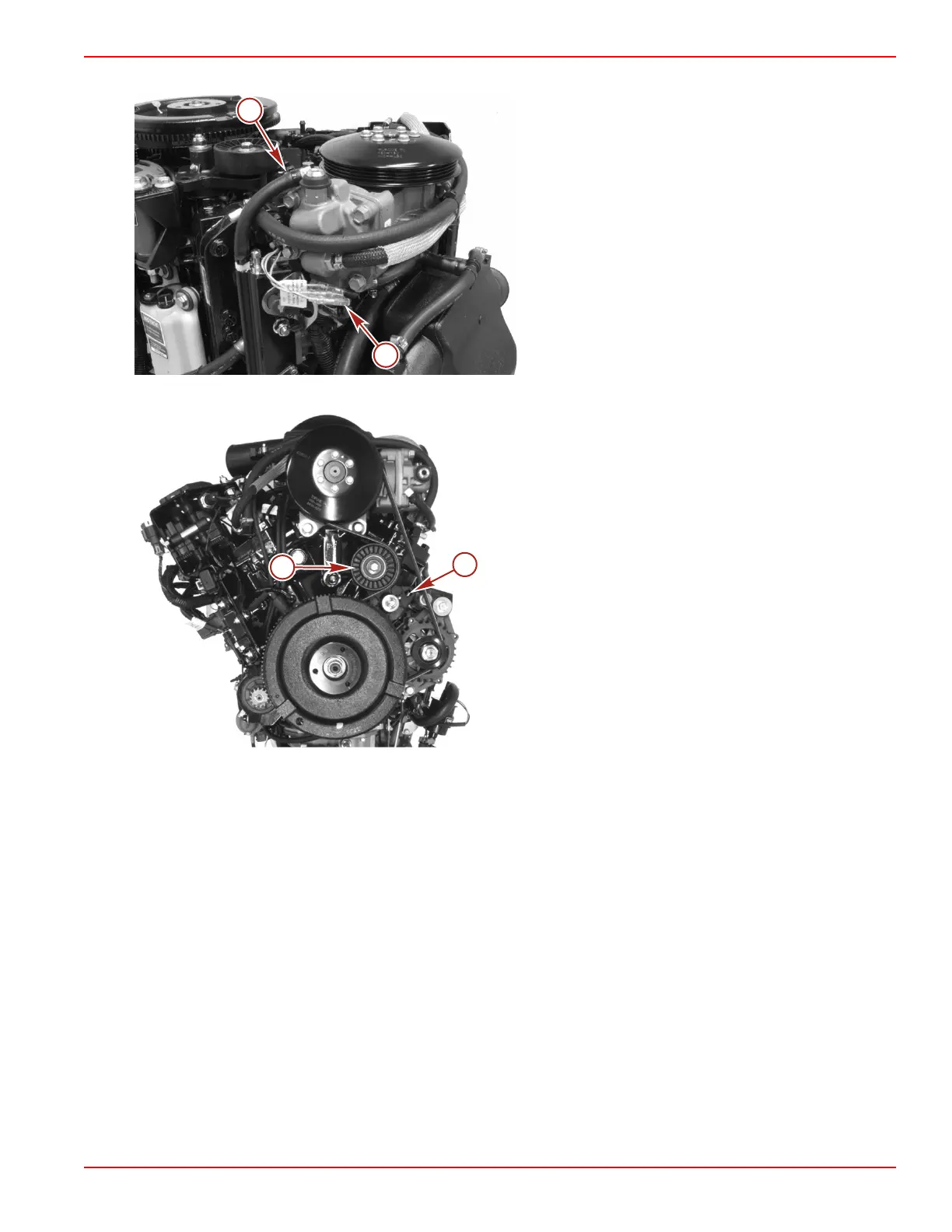

13. Connect the air compressor temperature sensor bullet connectors to the wire harness connector.
a - Water inlet hose
b - Bullet connectors
14. Use a 3/8 in. square drive on the belt tension arm and install the belt to the air compressor pulley.
a - Belt tensioner
b - 3/8 in. square drive
45934
a
b
45924
a
b
