Pump Unit
90-8M0050731 MAY 2011 Page 5A-27
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Stator/wear ring mounting screws 92-809819
Description Nm lb‑in. lb‑ft
Stator/wear ring mounting screws (M10 x 150) (4) 47 35
7. Remove the stator fill/drain and vent plugs. Apply Loctite 567 PST Pipe Sealant to the plug threads.
8. Fill the stator with High Performance Gear Lubricant until oil flows out the vent hole. Install the vent plug and fill plug.
NOTE: The stator oil should be checked periodically for contamination and fluid level. To check stator oil, shift the reverse
gate to the forward position. Using an allen socket and extension, remove the stator vent plug. Use a small screwdriver to dip
into the oil to check it for contamination, discoloration, and level. If oil is low, add oil. If oil is contaminated or discolored, shaft,
seals, and bushings must be inspected and/or replaced before refilling stator with new oil. After filling the stator with oil, apply
Loctite 567 PST Pipe Sealant to the plug threads and install the plug.

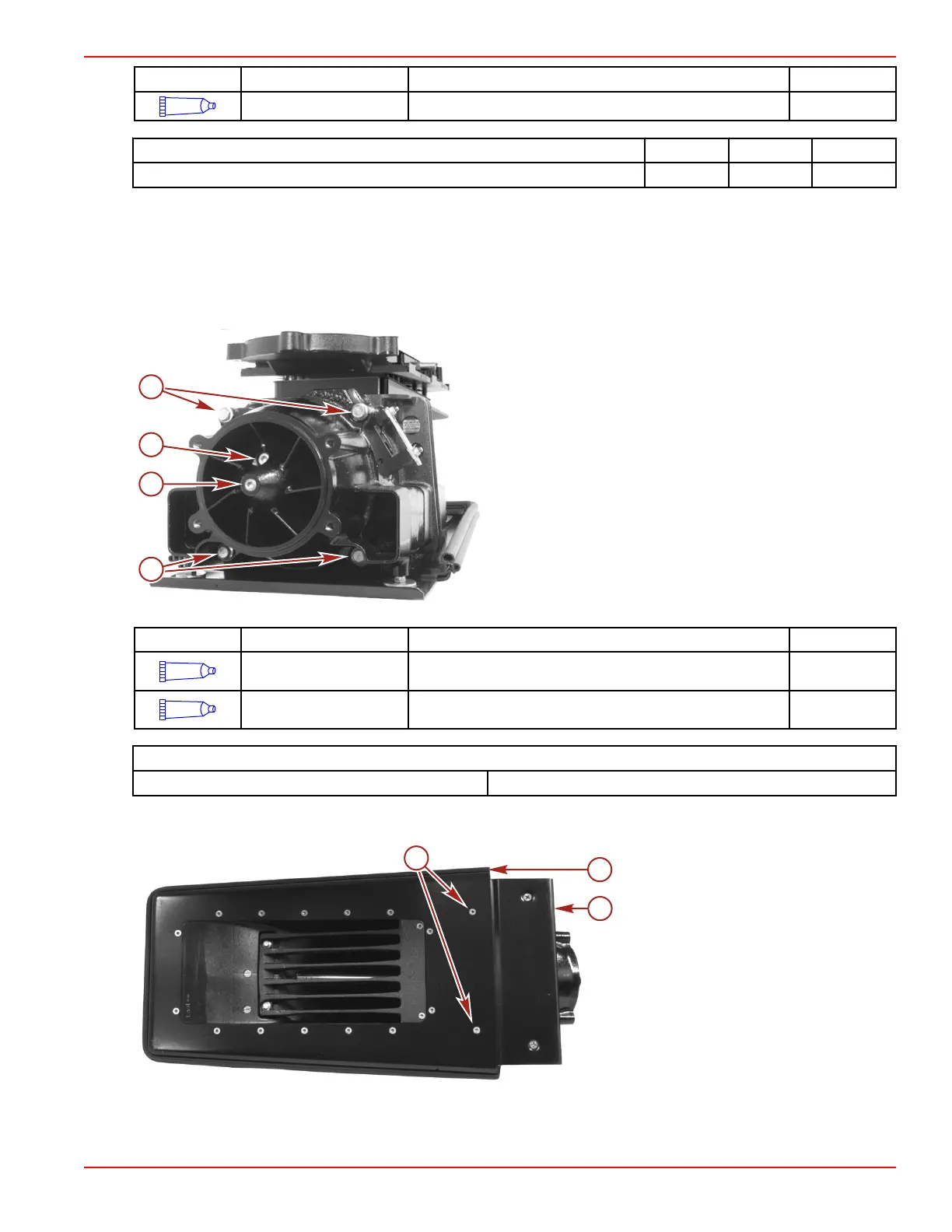

a - Screw (M10 x 150)
b - Vent plug
c - Fill/drain plug
Tube Ref No. Description Where Used Part No.
87
High Performance Gear
Lubricant
Stator 92-858064K01
9
Loctite 567 PST Pipe
Sealant
Stator fill/drain and vent plugs 92-809822
Stator
Fluid capacity 550 ml (19 fl oz)
9. Apply Loctite 242 Threadlocker to the screws securing the trim plate to the ride plate. Tighten the screws to the specified
torque.
a - Screws (M6 x 20) (2) (30 Torx)
b - Ride plate
c - Trim plate
