Pump Unit
90-8M0050731 MAY 2011 Page 5A-31

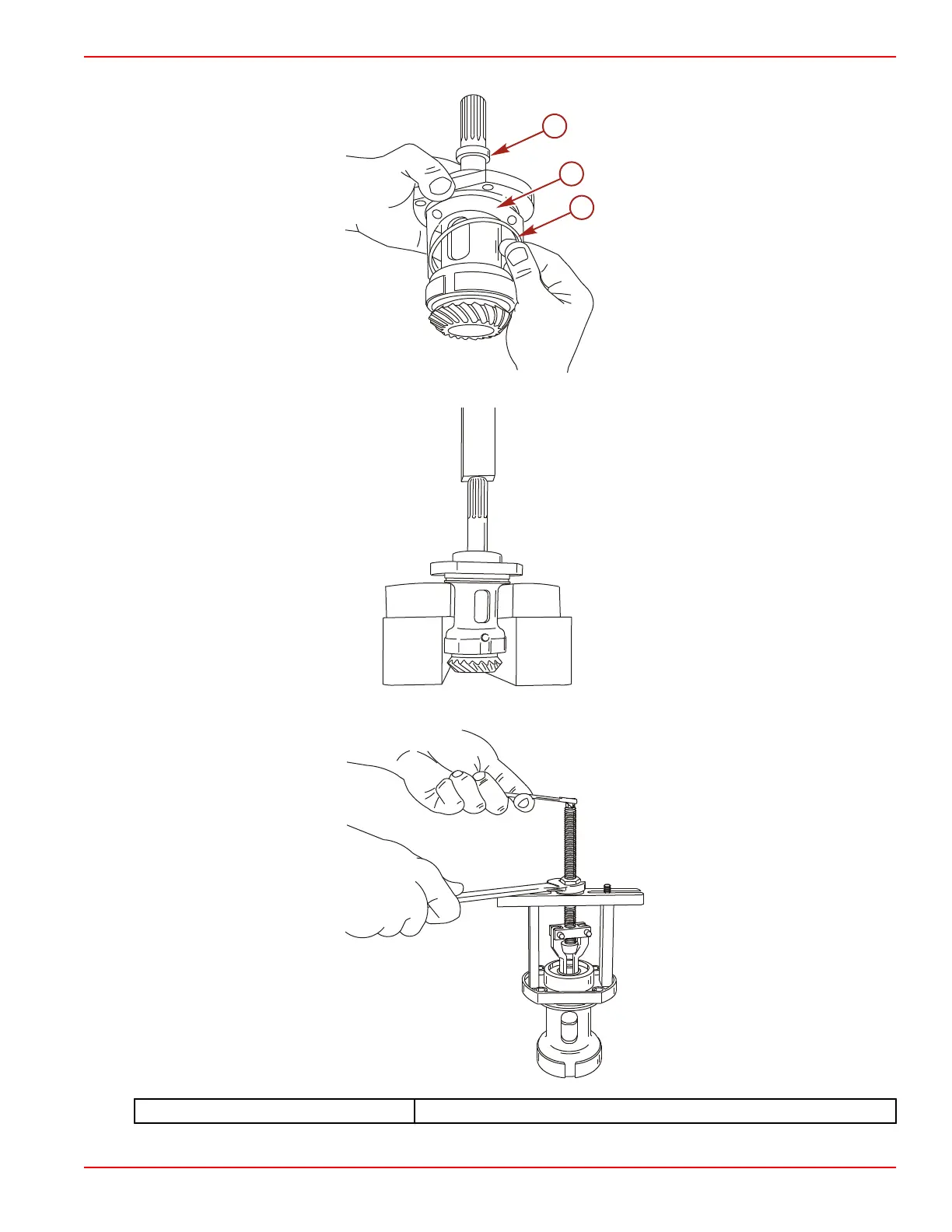

2. Remove the rubber ring, O‑ring, and shims.
a - Rubber ring
b - Shims
c - O‑ring
3. Press the pinion shaft out of the pinion shaft housing.
45267
4. Remove the pinion shaft ball bearing and two seals using the bearing puller assembly.
45268
Bearing Puller Assembly 91‑ 83165T
45266
a
c
b
