Mercury 200 OptiMax Jet Drive Service Manual

Pump Unit
Page 5A-34 90-8M0050731 MAY 2011

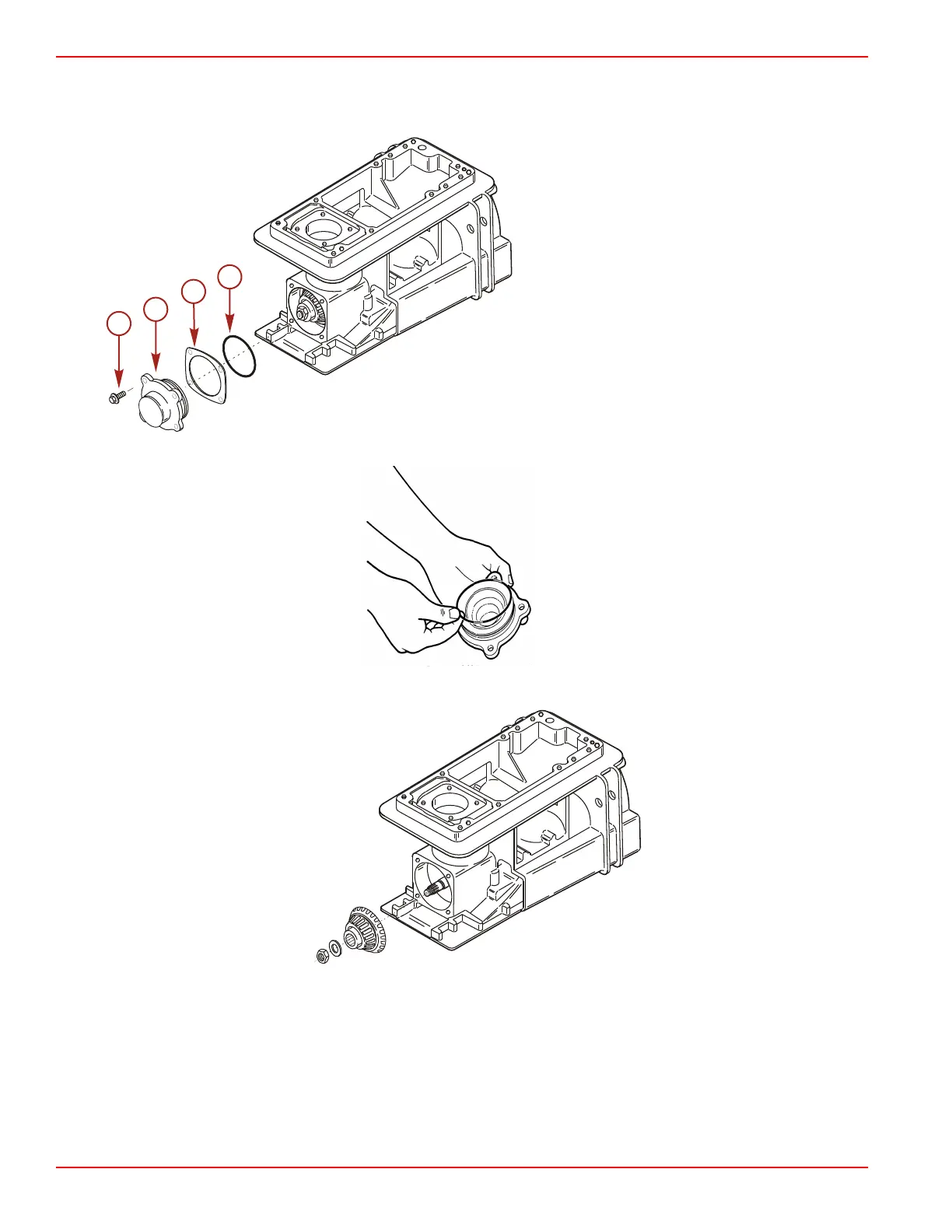

2. Remove the stator fill screw; drain oil into a suitable container.
3. Remove the ride plate.
4. Remove the four screws securing the impeller shaft cover to the drive housing. Remove the cover.
a - Screw
b - Cover
c - Shim
d - O‑ring
NOTE:
Take care not to damage or misplace the shims.
45277
5. Remove the nut and washer from the end of the impeller shaft. Remove the impeller shaft gear.
45279
45276
a
b
c
d
