Jet Installation
90-8M0050731 MAY 2011 Page 1D-11

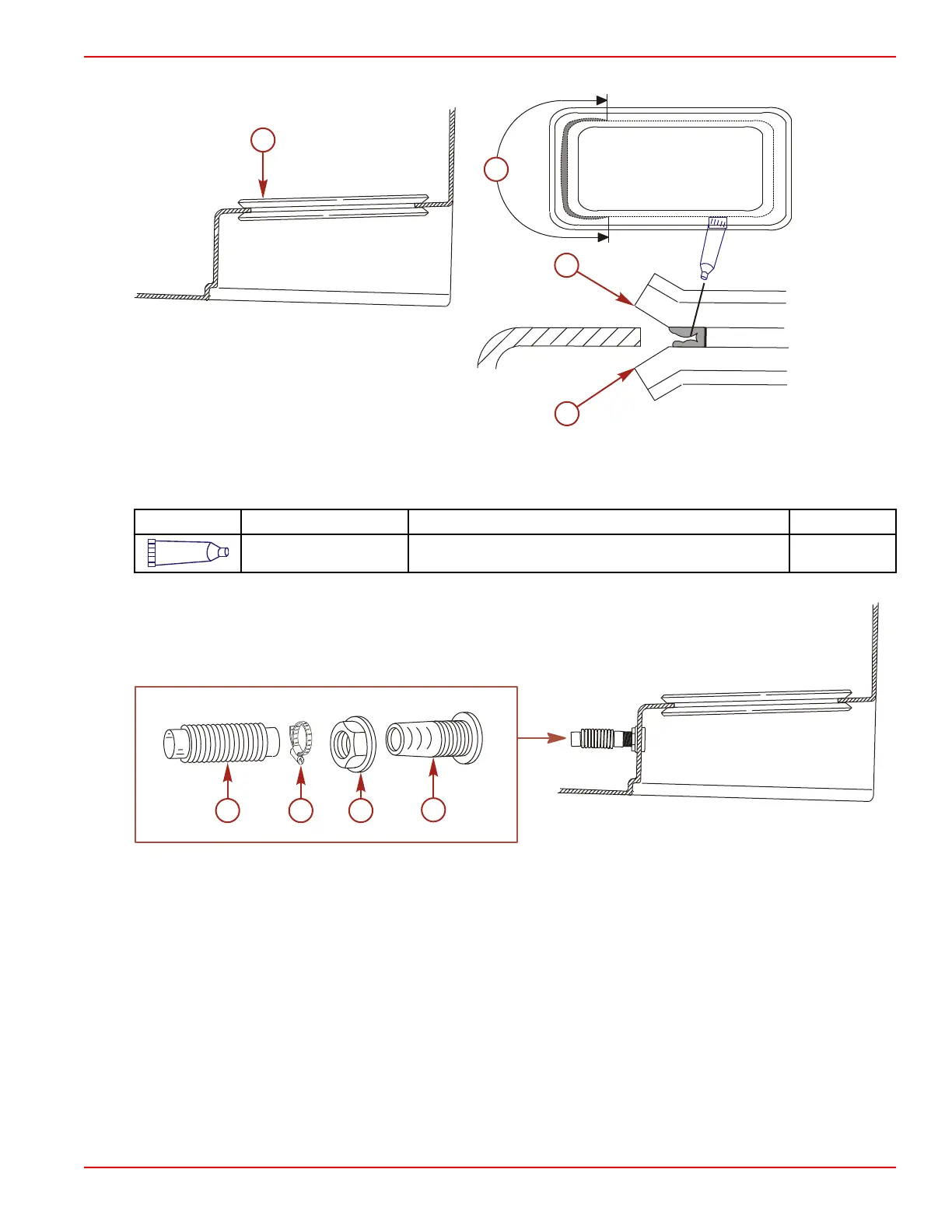

IMPORTANT: Avoid gluing the flexible sealing lips to the tunnel.
a - Glue front portion of grommet
b - Flexible sealing lips to tunnel
Tube Ref No. Description Where Used Part No.
Loctite 454 Prism Instant
Adhesive Gel
Front portion of grommet
3. Install the through‑the‑hull fitting bellow assemblies into the tunnel. Tighten securely.
a - Bellows
b - Clamp
c - Nut
d - Through‑the‑hull fitting
4. Insert the steering cable through the port side through‑the‑hull fitting and bellows.
5. Route the steering cable through the holes in the port side flange on the side of the pump housing.
