MIMAKI CF2 Series User Manual

TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT]
3-13

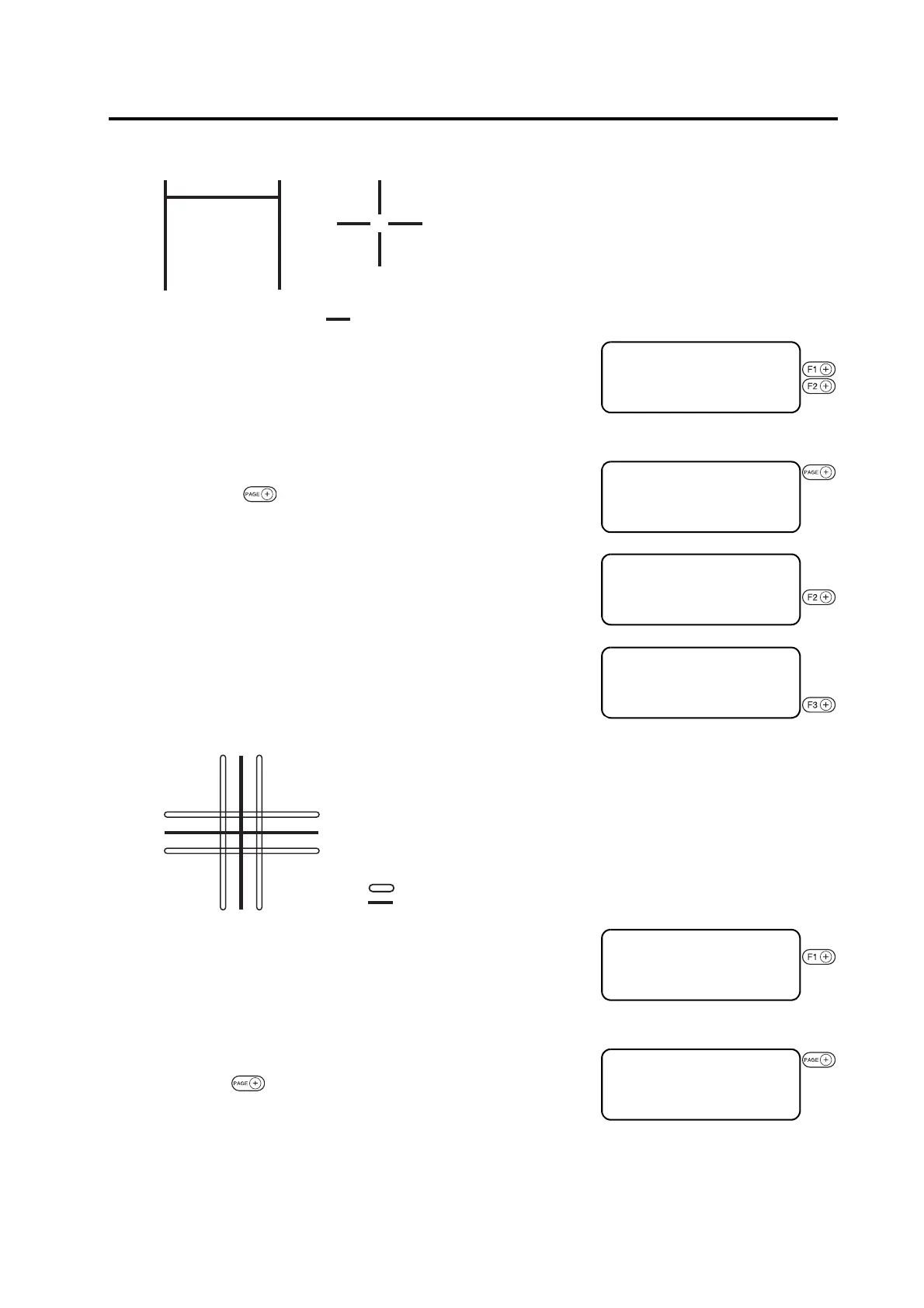

Normal pattern A Normal pattern B
6. Input a value for each pattern.
[For [A], input an adjustment value for pattern A.
For [B], input an adjustment value for pattern B
7. Carry out steps of procedure 4 and 5 in repetition.
Repeat these steps of procedure until a normal pattern is obtained.
8. Invoke the 2nd page of the ADJUSTMENT menu.
Press the key several times to call up the menu for the adjust-
ment of the θ angle.
9. Select the pattern for the adjustment.
1, 2
10. To check the θ angle, select the [TEST PATTERN].
Plot the pattern using the pen, then cut the pattern with the tangential
cutter.
Normal pattern 1 (2)
11. Input a value for the [CUTTER θ].
Increasing a value will rotate the pattern clockwise.
Decreasing a value will rotate the pattern counterclockwise.
12. Carry out steps of procedure 9 and 10 in repetition.
Repeat these steps of procedure until a normal pattern is obtained.
13. Invoke the 3rd page of the ADJUSTMENT menu.
Press the key several times to invoke the menu for the adjust-
ment of the offset.
:Cutter
< ADJ > SWIVEL １ ／ ３
A (LNG) ＊＊． ＊＊＞
Ｂ ＊＊． ＊＊＞
TEST PATTERN ――― ＞
< ADJ > SWIVEL １ ／ ３
A (LNG) ＊＊． ＊＊＞
Ｂ ＊＊． ＊＊＞
TEST PATTERN ――― ＞
＜ADJUST＞ θ ２／３
CUTTER θ ＊＊． ＊＊＞
PATTERN No. ＊ １ ＞
TEST PATTERN ――― ＞
＜ADJUST＞ θ ２／３
CUTTER θ ＊＊． ＊＊＞
PATTERN No. ＊ １ ＞
TEST PATTERN ――― ＞
:Pen
:Cutter
＜ADJUST＞ θ ２／３
CUTTER θ ＊＊． ＊＊＞
PATTERN No. ＊ １ ＞
TEST PATTERN ――― ＞
＜ADJUST＞ θ ２／３
CUTTER θ ＊＊． ＊＊＞
PATTERN No. ＊ １ ＞
TEST PATTERN ――― ＞
