CHECKING CUTTING CONDITIONS [TEST CUT]
2-35

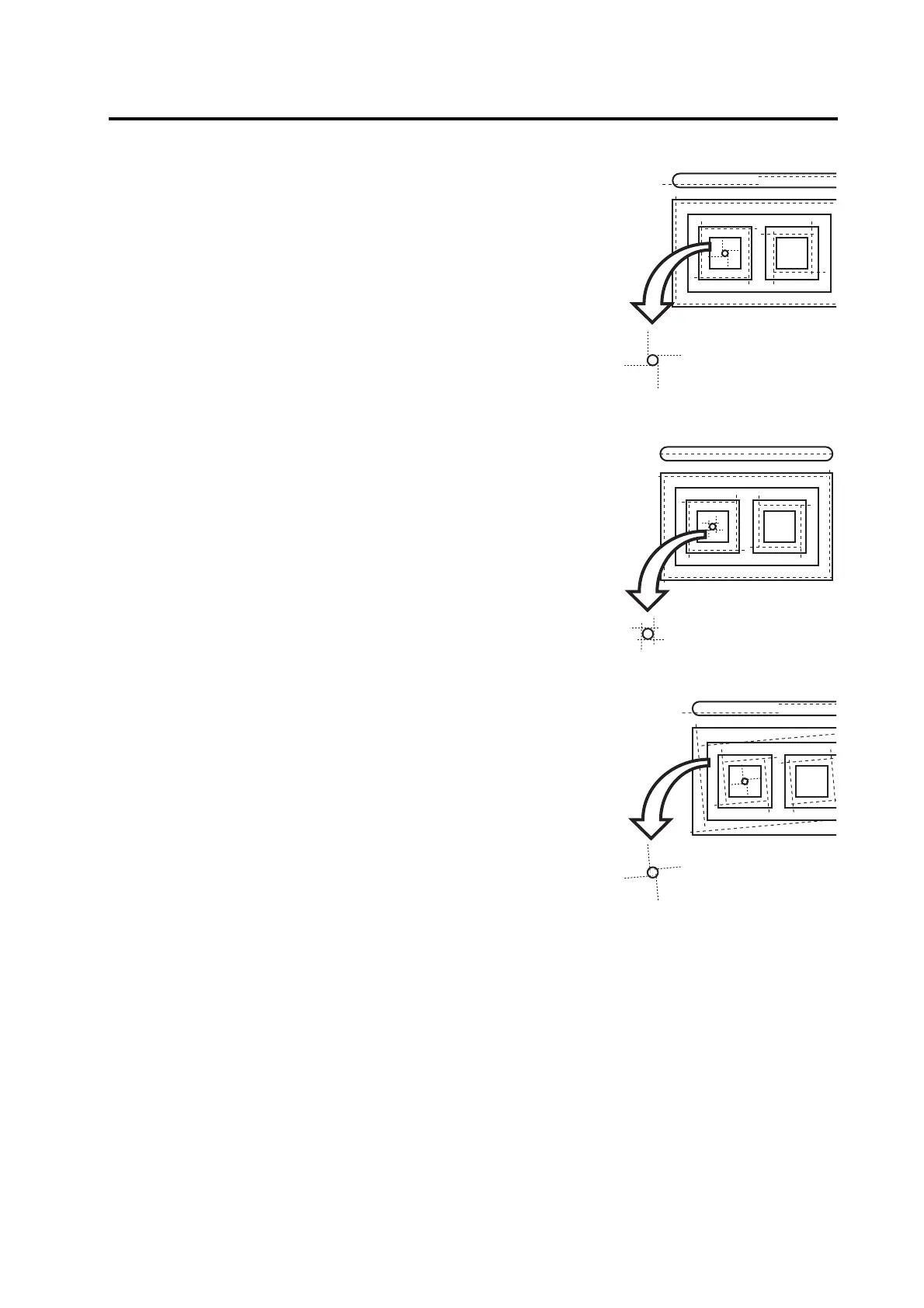

Sample H
The point from which the cutter starts is this side (or far side) of
the predetermined start position, and the tangential cutter shifts to
the right (or left) from the correct position.
Corrective measure
Refer to the corrective measures for the samples C and E.
Sample I
The point at which the cutter finishes cutting goes beyond (or
does not reach) the predetermined end position, and the tangential
cutter shifts to the right (or left) from the correct position.
Corrective measure
Refer to the corrective measures for the samples D and E.
Sample J
The cutter rotates clockwise (or counterclockwise), the point at
which the cutter finishes cutting goes beyond (or does not reach)
the predetermined end position, and the tangential cutter shifts to
the right (or left) from the correct position.
Corrective measure
Refer to the corrective measures for the samples B, D and E.
