7.520 t+
View @admin
LC 1
LC 2
LC 3
LC 4
101
102
103
104
1.393 t
2.416 t
1.547 t
2.152 t
Info Assign by name Accept

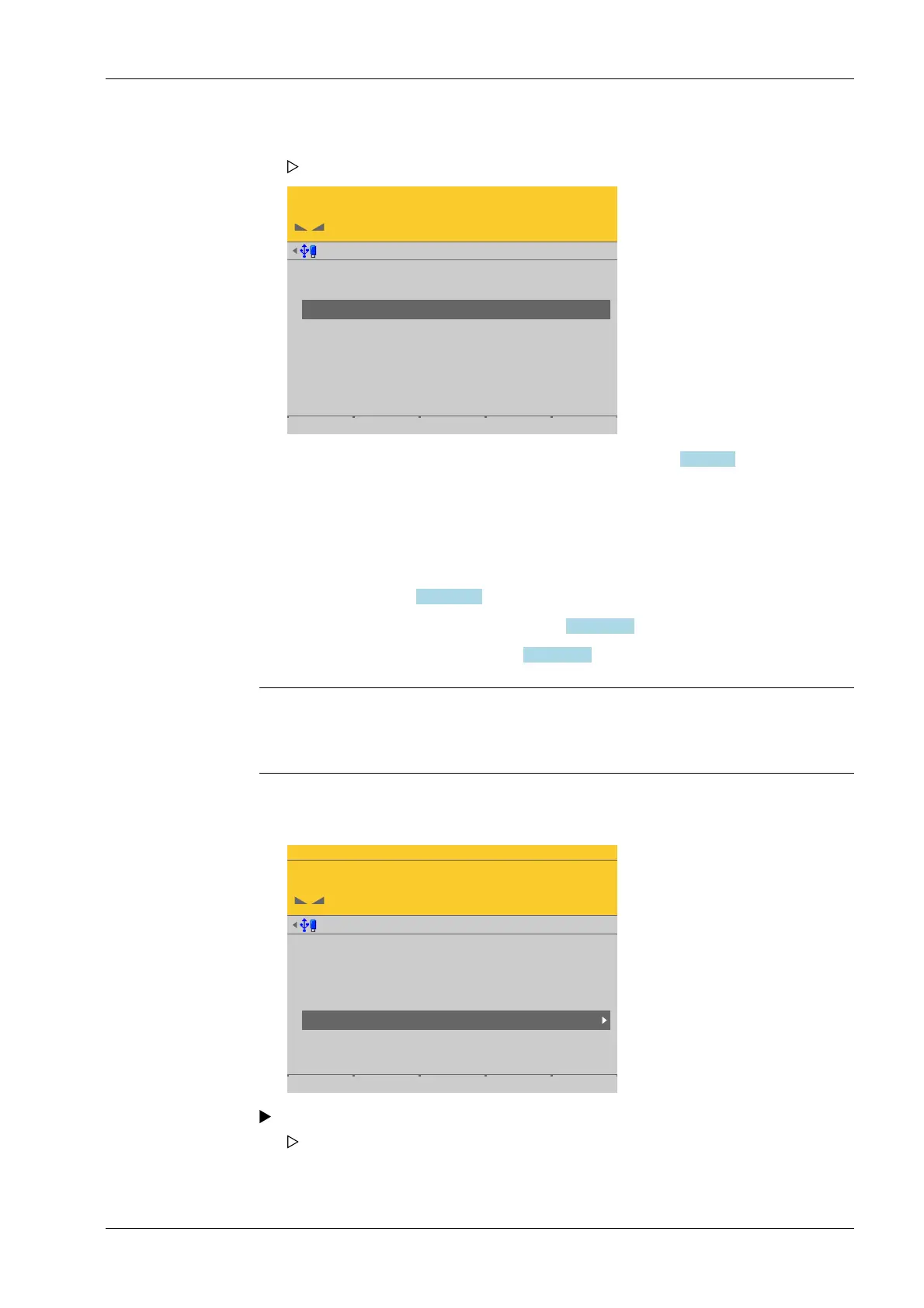

4.7.7.3.4 Calibrate the scale
In this menu item (under Calib), the load cells of the digital weighbridge load cell
Pendeo
®
Truck are calibrated.
- [New], see Chapter 4.7.7.3.4.1.
- [Modify] (for minor changes), see Chapter 4.7.7.3.4.2.
- Dead load (correction), see Chapter 4.7.7.3.4.3.
Note:
The menu item [Modify] is only used for minor changes (e.g. changing the dead load/
preload). Otherwise, the menu item [New] should be selected.
Accessible via MENU – [Operating] - [System setup] - [Weighing points] - [Weighing
point x] - [Calib] - [Calibrate the scale].
WP-D Max 200t d= 0.02t
7.520+ t
Weighing points @admin
Setup Pendeo
Quick install with search load cells and set dead load
Search for connected load cells
View and assign load cells
Calibrate the scale
Assign load cell name
Service function for load cells
9. Select and conrm [View and assign load cells].
The new assignment will be displayed.
10. Check the corner load (dead load) if necessary; see Chapter 4.7.7.3.7.
11. Press EXIT to return to the previous window.
Select and conrm [Calibrate the scale].
The data from the last calibration is displayed.
