Minebea Intec X3 Process Indicator PR 5410 User Manual

Description Data
Cable length 400 m (between two remote bus subscribers); overall length:
13 km
Certicates From INTERBUS CLUB e.V.:
- Compatibility with InterBus standard.
- IEC 61158 (Parts 3 to 6), EN 50254 (DIN 19258)
- Industry-compatible CE, UL and cUL
InterBus-S connections

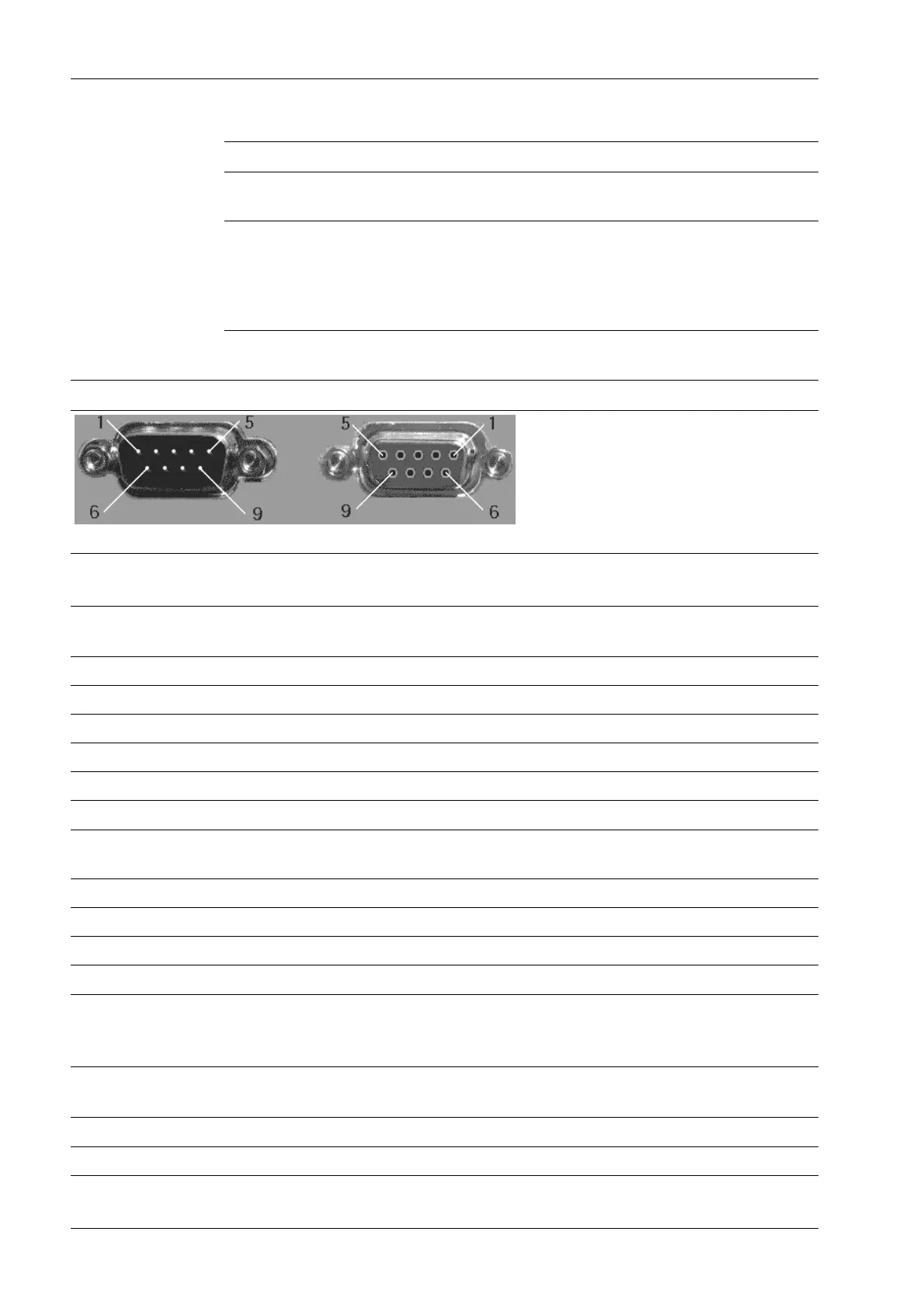

Bus "IN" Bus "OUT"
Example: Phoenix Contact IBS RTC-T
Allocation of the 9-pin D-sub male connector "IN" ②②
Pin allocation acc. to
DIN 41642
Signal Color acc. to
DIN 47100
Description
Cable sheath pea green Special InterBus cable (certied)
Housing S Screen
1 ---------------------- DO1 yellow not inverted, data output
2 ---------------------- DI1 gray not inverted, data input
3 ---------------------- GND brown signal ground
4 not connected
5 ---------------------* GND signal ground
(continuation jumper: 5-9)
6 ---------------------- IDO1 green inverted, data output
7 ---------------------- IDI1 pink inverted, data input
8 not connected
9 ---------------------* RBST (continuation jumper: 5-9)
* only if necessary
Allocation of the 9-pin D-sub female connector "OUT"③③
Pin allocation acc. to
DIN 41642
Signal Color acc. to
DIN 47100
Description
Cable sheath pea green Special InterBus cable (certied)
Housing S Screen
X3 Process Indicator PR 5410 4 Device installation
Minebea Intec EN-100
