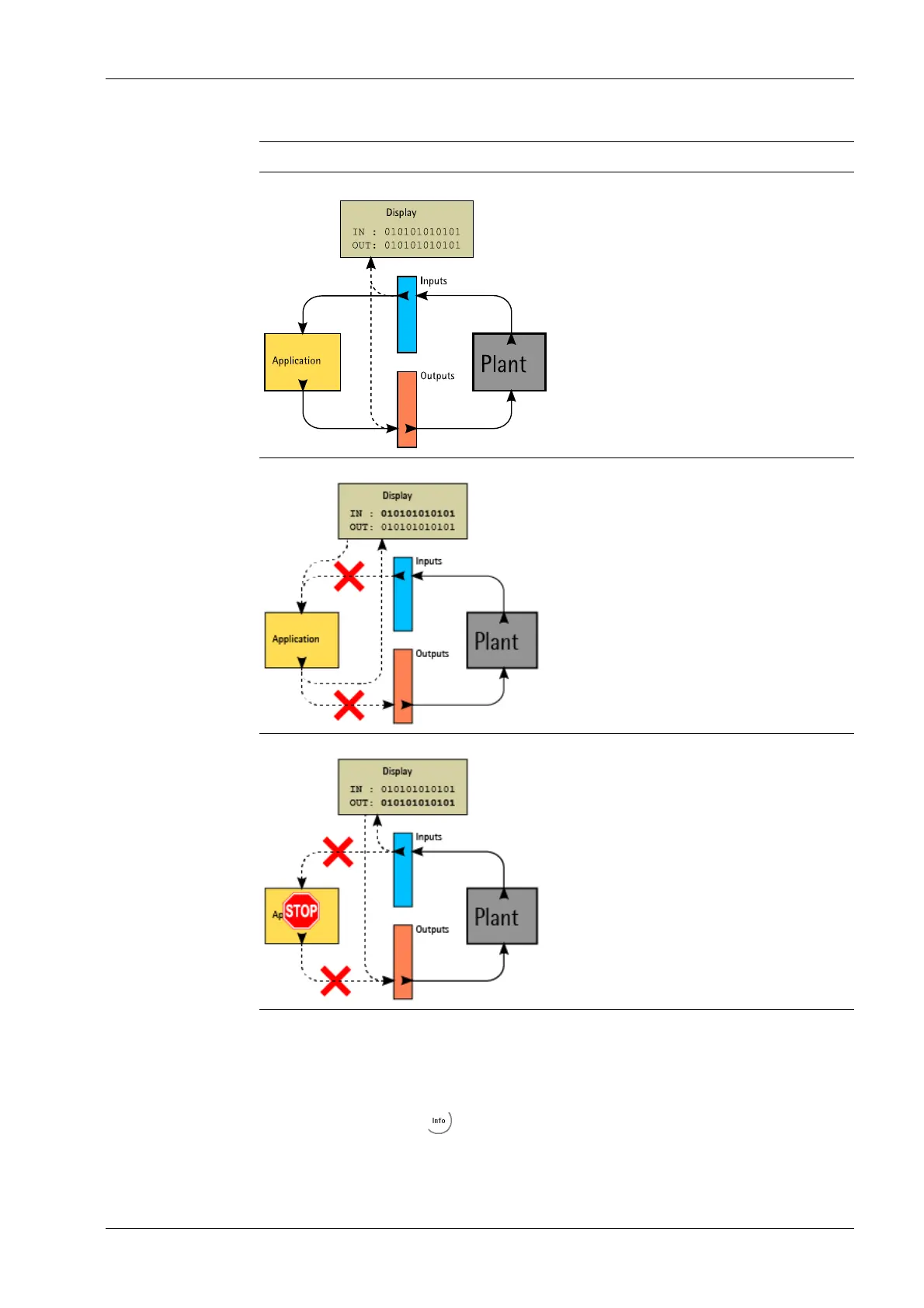

Test mode Description
"Monitor" Active PLC:
- The physical inputs of the system
(plant) are directed to the PLC (appli-
cation).
- The physical outputs of the system
(plant) are set by the PLC (application).
- The physical inputs and outputs are
displayed (display).
"Internal" Active PLC:
- The entered input values are sent to
the PLC (application).
- The PLC output is displayed (display).
- The physical inputs and outputs of the
system (plant) are deactivated and
passive (in secured condition).
"External" Deactivated PLC:
- The physical inputs are displayed (dis-
play).
- Output values can be entered.
- The given output values are set on the
physical outputs.
9.1.4.1 Adapting the analog output
The output current can be adapted in small ranges. This is required, if small deviations
from the nominal value occur in a connected PLC.
Open the menu with - [HW-Slots].
9 Extended functions X3 Process Indicator PR 5410
EN-267 Minebea Intec
