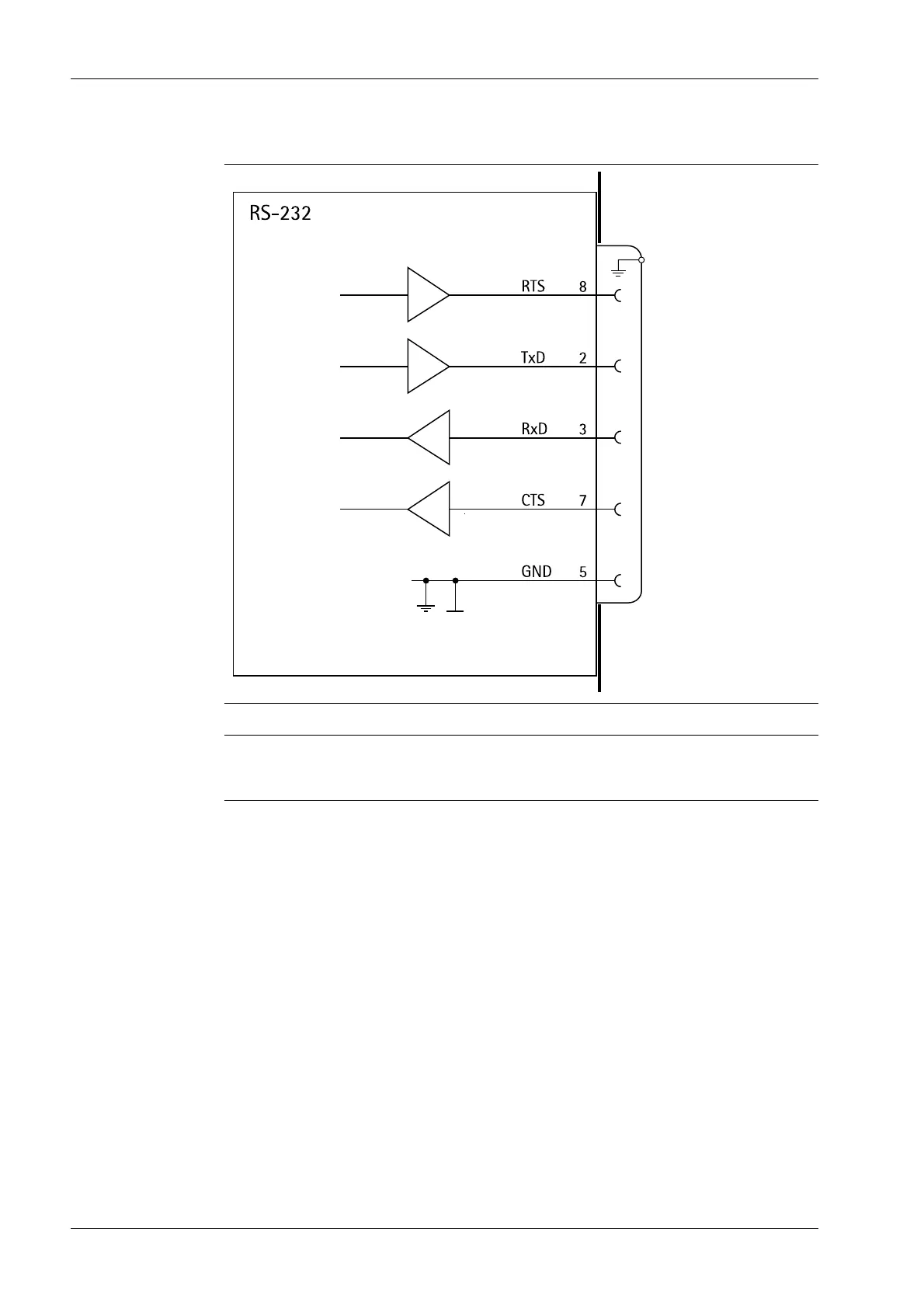

Block diagram RS-232
Note:
After 30 seconds without data exchange, RTS and TxD are switched o.
4.4.4.1 Connecting a PR 5110 remote display
The remote display PR 5110 can be connected to the device via the internal RS-232
interface or the PR 5510/02 card or the PR 5510/04 card.
X3 Process Indicator PR 5410 4 Device installation
Minebea Intec EN-36
