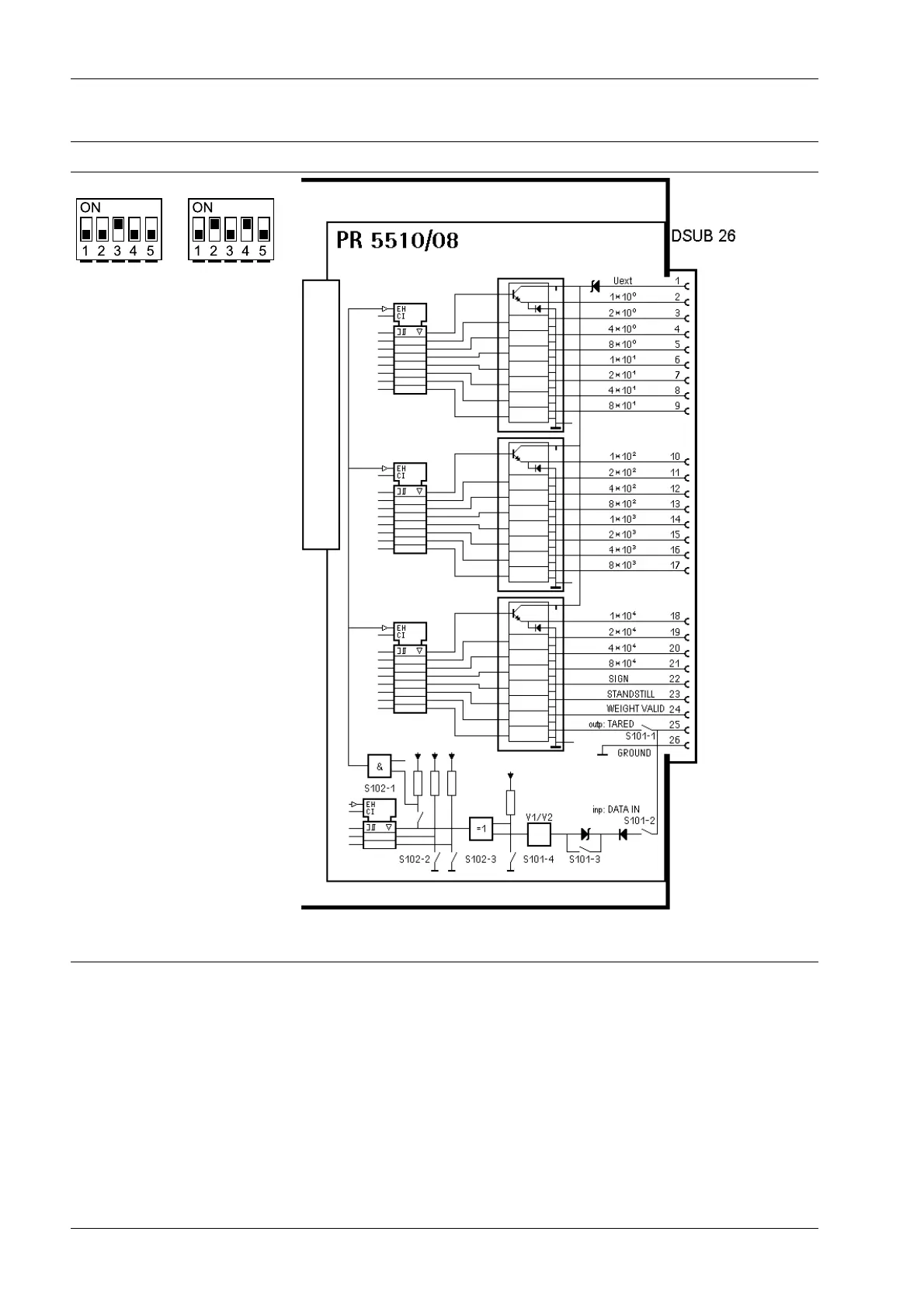

Switch for input PR 5510/08 block diagram
Factory setting:
S102
Factory setting:
S101
An external power supply is required: PIN 1 (Uext), reference potential
PIN 26 (GND)
4.6.5.1 Outputs
The outputs for PR 5510/08 (PIN 224) work with a shared power supply at the collector
as a reference potential and open emitter outputs.
A non-active output is highly resistant.
A voltage of approx. 1.7 V, which is less than the supply voltage, is applied to an active
output.
The load to be connected is between the outputs (PIN 224, 25) and GND (PIN 26).
X3 Process Indicator PR 5410 4 Device installation
Minebea Intec EN-78
