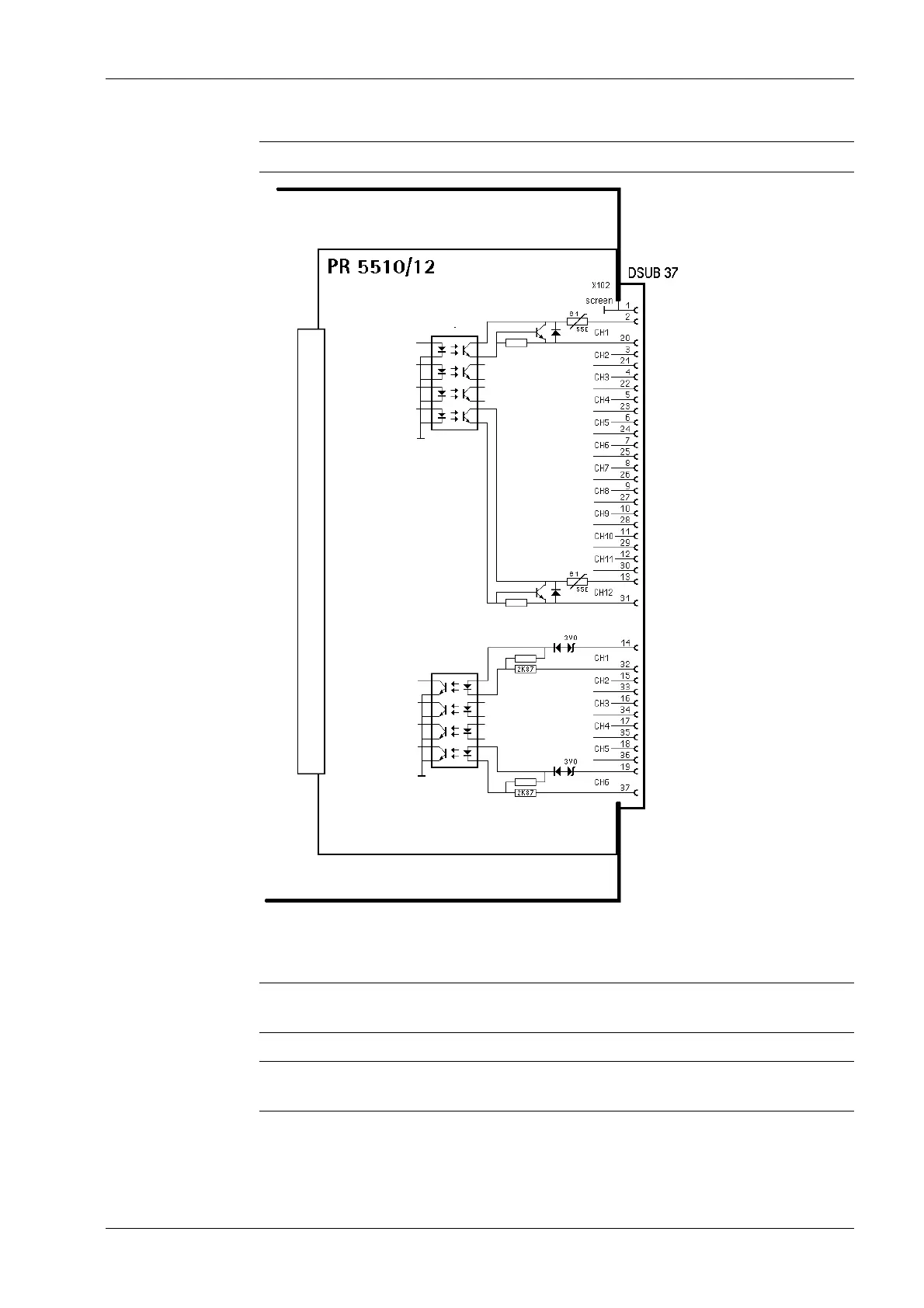

PR 5510/12 block diagram
An external power supply is required: I/O channels potential-free; no
shared reference
Outputs
Inputs
Digital inputs
Channel CH1 CH2 CH3-CH6
Assignment Tare/reset tare, po-
sitive ank
Print command, positive
ank
Not used
