Digital outputs
Channel CH1 CH2 CH3 CH4 CH5 CH6 CH7-CH12
Assignment "Dim"
Weight is <0
or >Max.
Weight is
within
the zero-
setting
range.
Output limit
1
Output li-
mit 2
Gross weight
value is within
±¼ d of zero
Scale er-
ror (ADC
error)
Not used

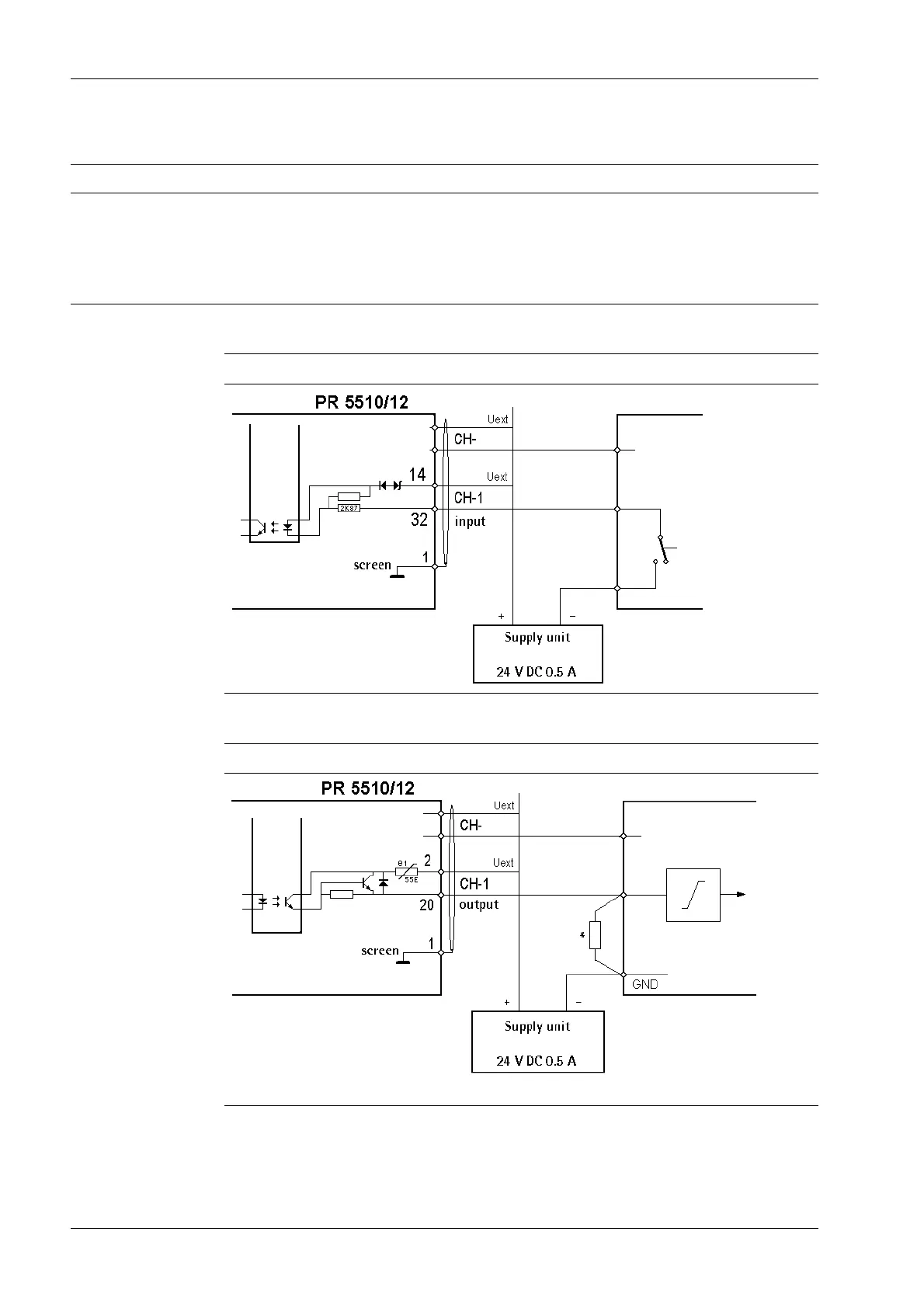

Input circuitry
Contact input
Output circuitry
Voltage output
* The load resistance must be 2.2 kΩ/1 kΩ with 24 V/5 V.
