TRANSPORT MODE: Controls
3.2.3 Power and Network Cables
Location of Cables The power, network, and Ethernet cables attach to the end of the base that is opposite the column.
NOTE: Unplug cords before attempting transport.

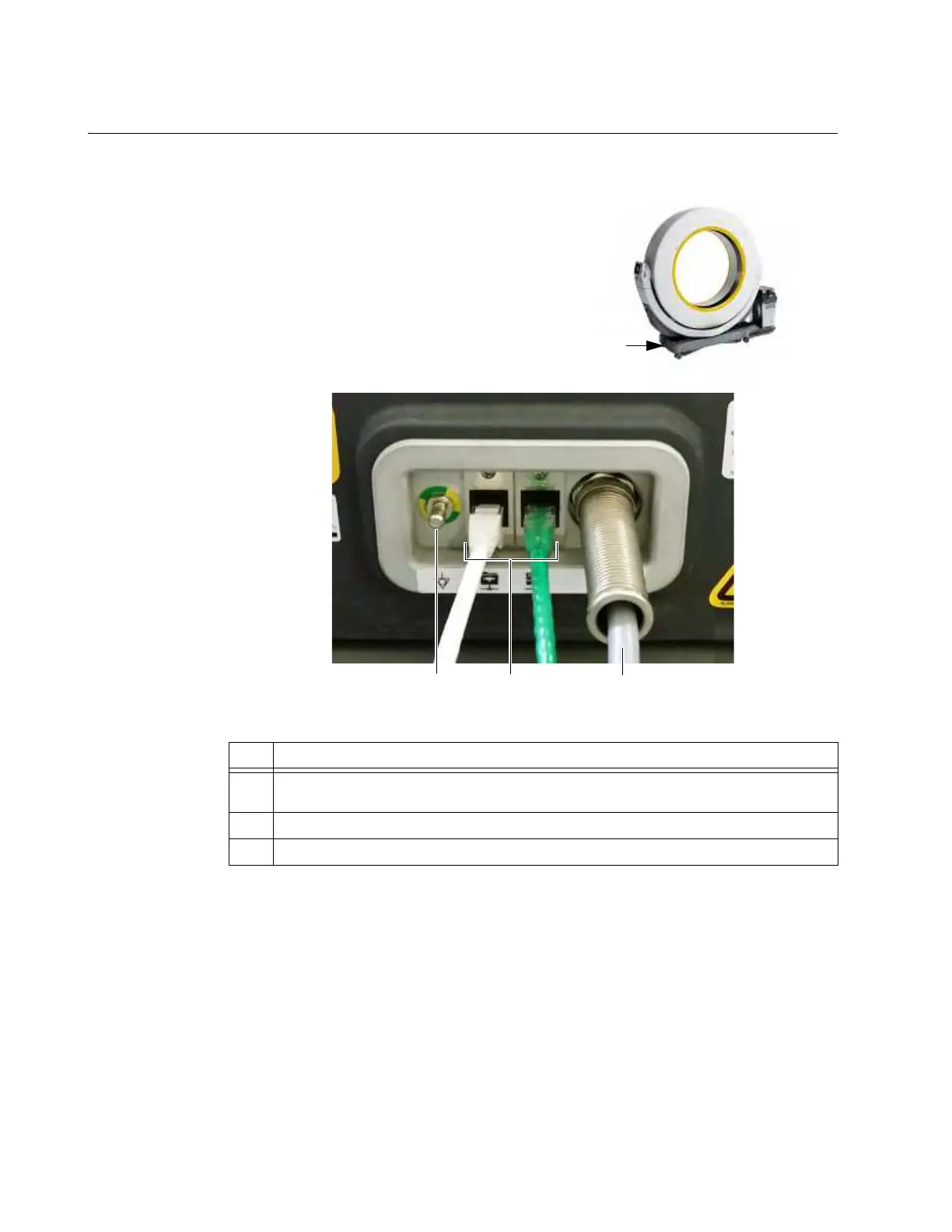

Figure 18
No. Components
a
Equipotential stud used to provide a means of linking the earth ground of the system to
other equipment to minimize any electrical potential difference between them.
s
Ethernet connectors for View Station (left) and hospital network (right).
d
Power cable.
