Mold-Masters E-Multi EM1 - Trigger; Parameter

Software Oscilloscope - continued

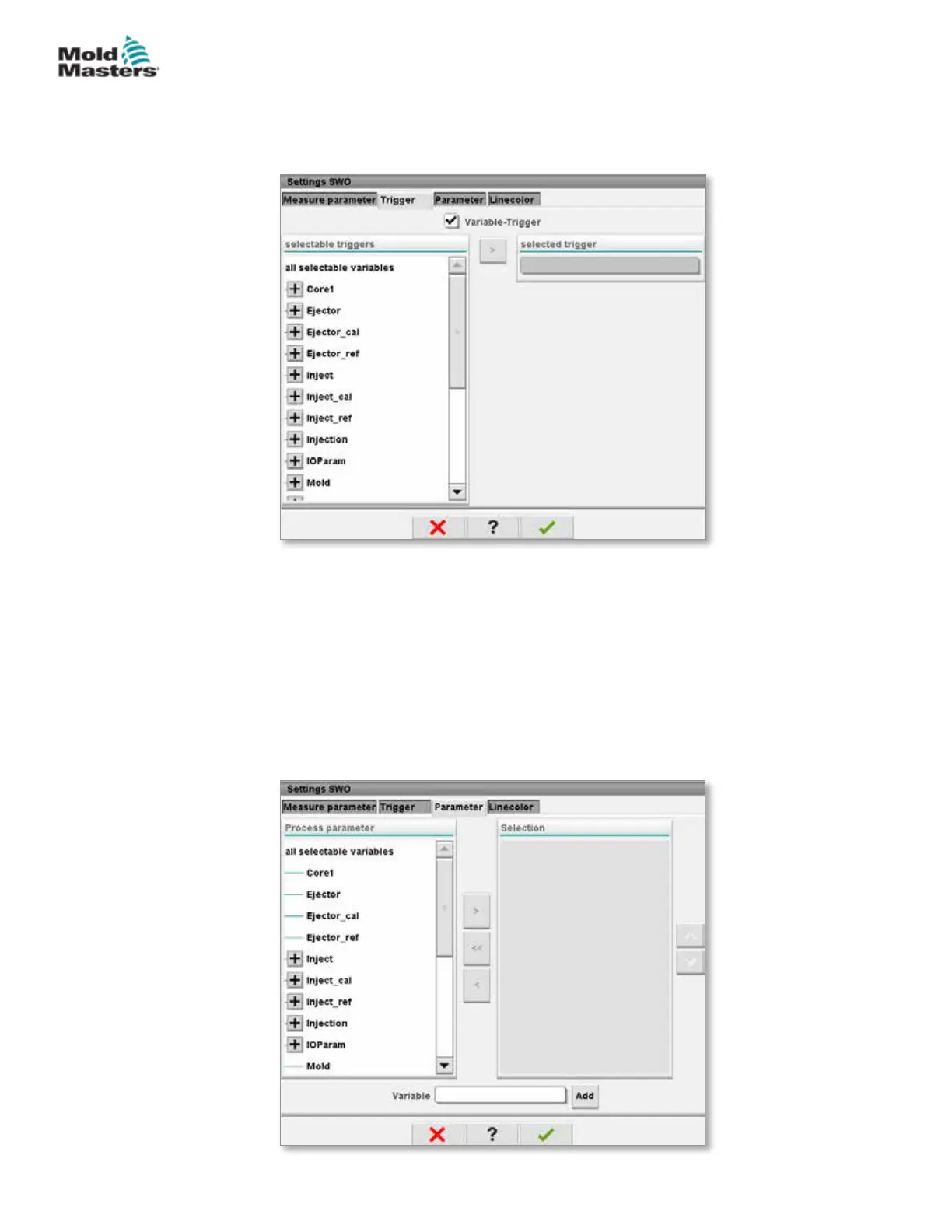

7.19.2 Trigger
Used to select the variable that will be used to trigger measurement.
7.19.3 Parameter
Used to select the variable that will be recorded. The Process parameter
column lists all available variables. The Selection column lists the variables
that are selected for recording.
The selection can be made by using the arrow buttons >, < and <<.
> Adds the highlighted variable from the process parameter list to the
selection list.
< Removes the highlighted element from the selection list.
<< Removes all elements from the selection list.
7-55
