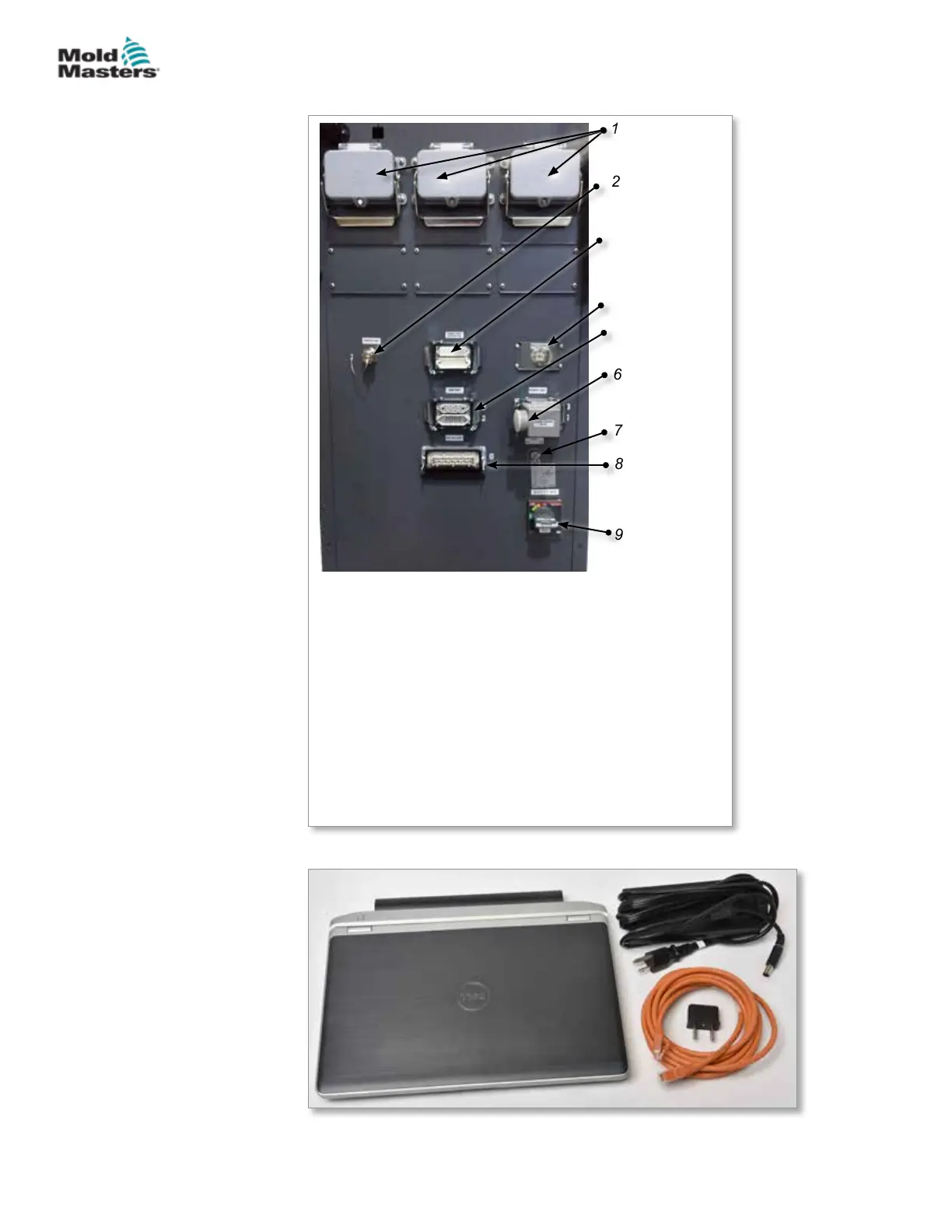

4.2 Controller Back - Connections Side
9
2
3
5
6
8
1
7
4
1. Zone connections for hot runner control option
2. Remote HMI connection
3. Barrel heater and thermocouple connection
4. Heat exchanger power
5. IMM E67 connection
6. E67 connection to robot. Jumper plug installed.
7. Bypass switch
8. Auxiliary injection unit connection
9. Main on / o power switch (circuit breaker)
Figure 4-2 Controller back connections
Figure 4-3 Diagnostic kit (option)
