5.4 Connect the Controller to the Molding
Machine
E-Multi units are compatible with both E67 and SPI injection machines.
All units ship with an IMM E67 cable. The cable connects to the IMM E67
connection on the controller. If used with an E67 IMM, the cable plugs into the
IMM’s E67 connection directly. If an SPI IMM is used, the cable plugs into the
optional IMM SPI adapter, which then plugs into the IMM SPI connection.
1
10
4
5
6
7
9
3
2
E-Multi side connections
EM1/2/3 Controller side connections
EM4 Controller side connections
8
1. E-Multi end barrel heat connection
2. E-Multi end aux. inj. I/O connection
3. Zone connections for hot runner control option
4. Remote HMI connection
5. Barrel heater and thermocouple connection
6. IMM E67 connection
7. E67 connection to robot. Jumper plug installed.
8. Bypass switch
9. Auxiliary injection unit connection
10. Main On / O power switch (circuit breaker)
11. Heat exchanger power
11
11

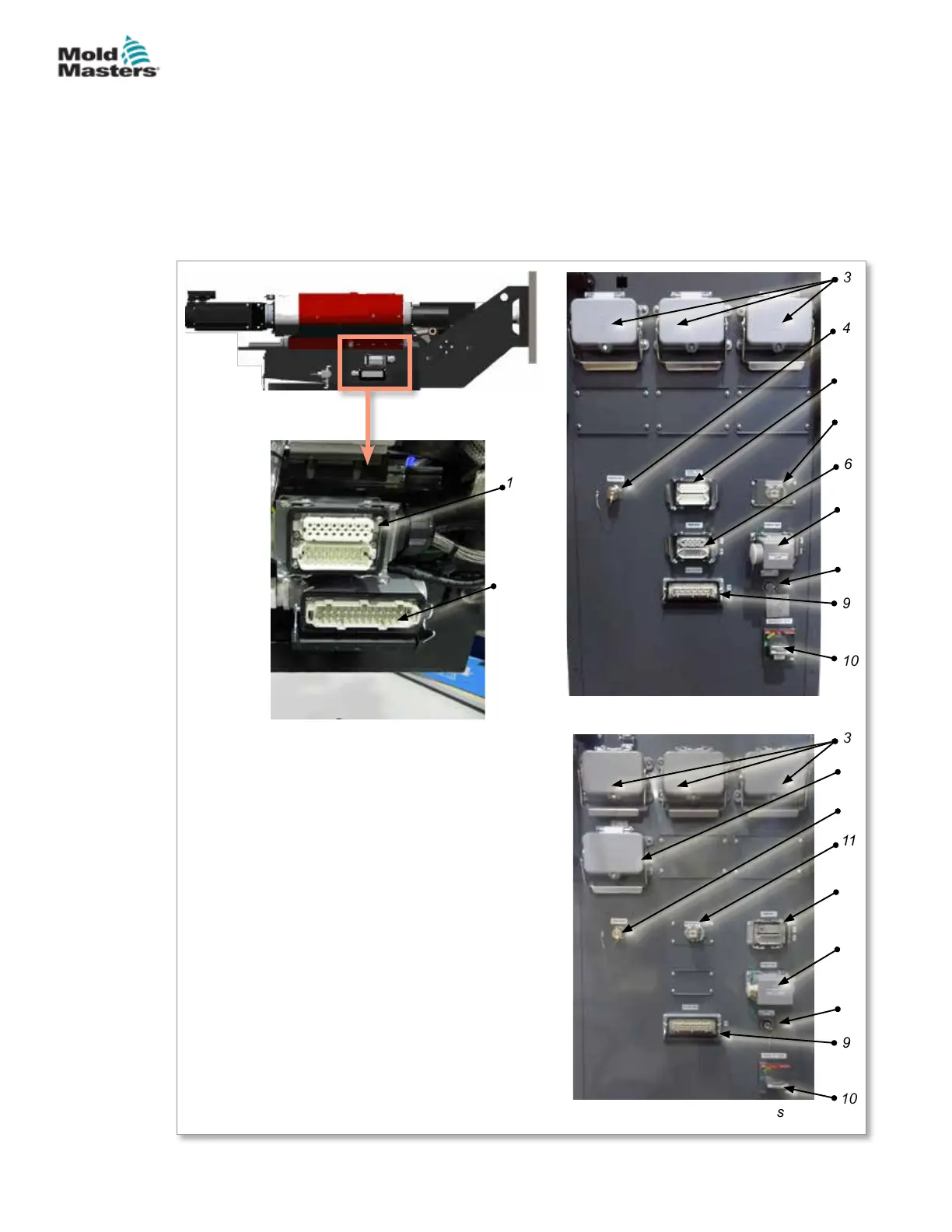

Figure 5-3 E-Multi connection locations
