1. Put the controller in setup mode.
2. Make sure barrel heaters are at operating temperature.
3. Tap the [Start] reference button.
If the nozzle is adjusted correctly, the routine will complete and the nozzle tip
position graphic will show the nozzle tip in the green region.
If the nozzle is not adjusted correctly, the carriage will move to a preset
position and tell the operator to adjust the nozzle using the manual adjuster
screw. Once the adjustment is made, press the [Start] button again to run the
calibration routine again.

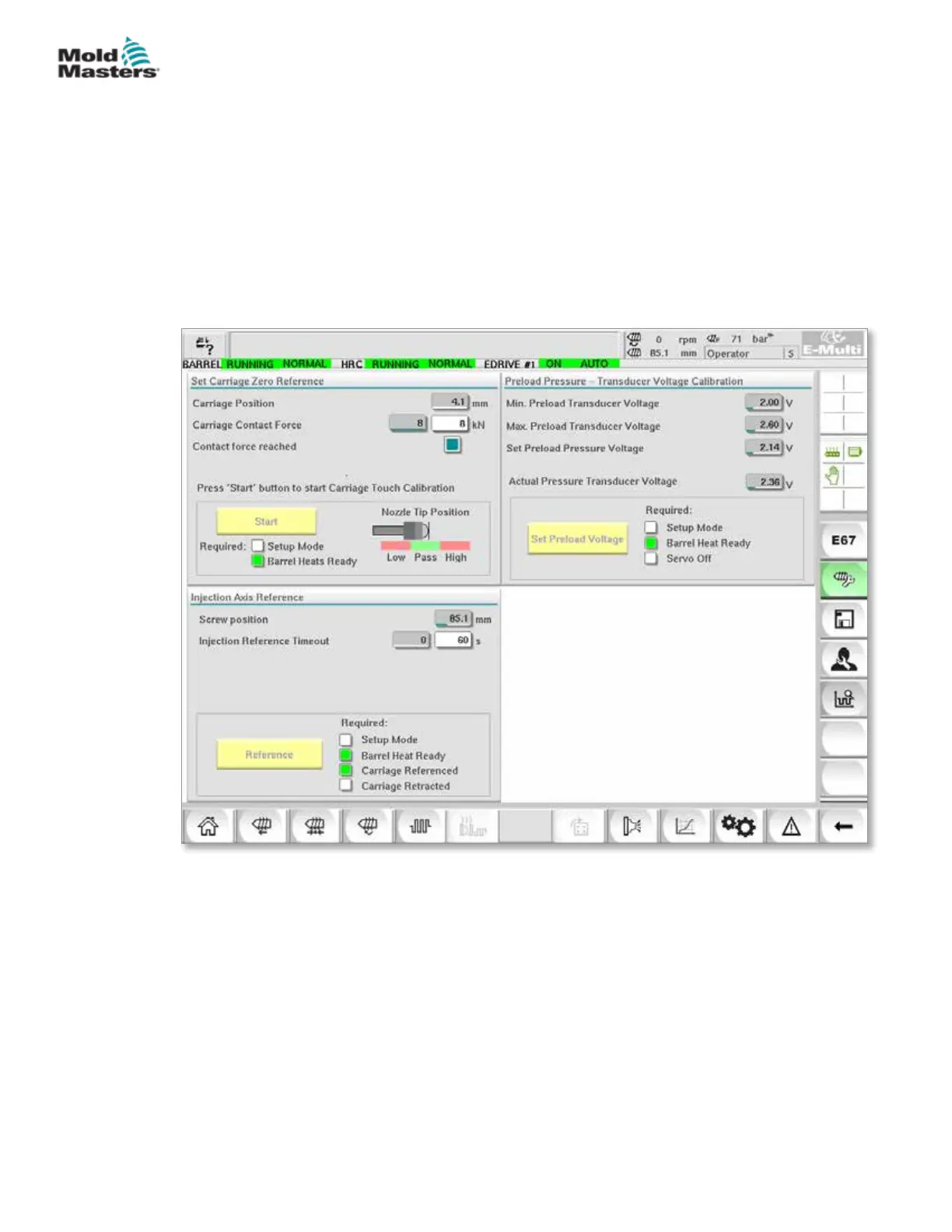

Figure 8-1 Nozzle protrusion adjustment - Radial and Servo carriage models
8.4.3 Automatic Calibration
