7.15 Valve Gate Settings Screen
This screen is used to control individual valve gates, typically for single acting
solenoids in pneumatic or hydraulic systems.

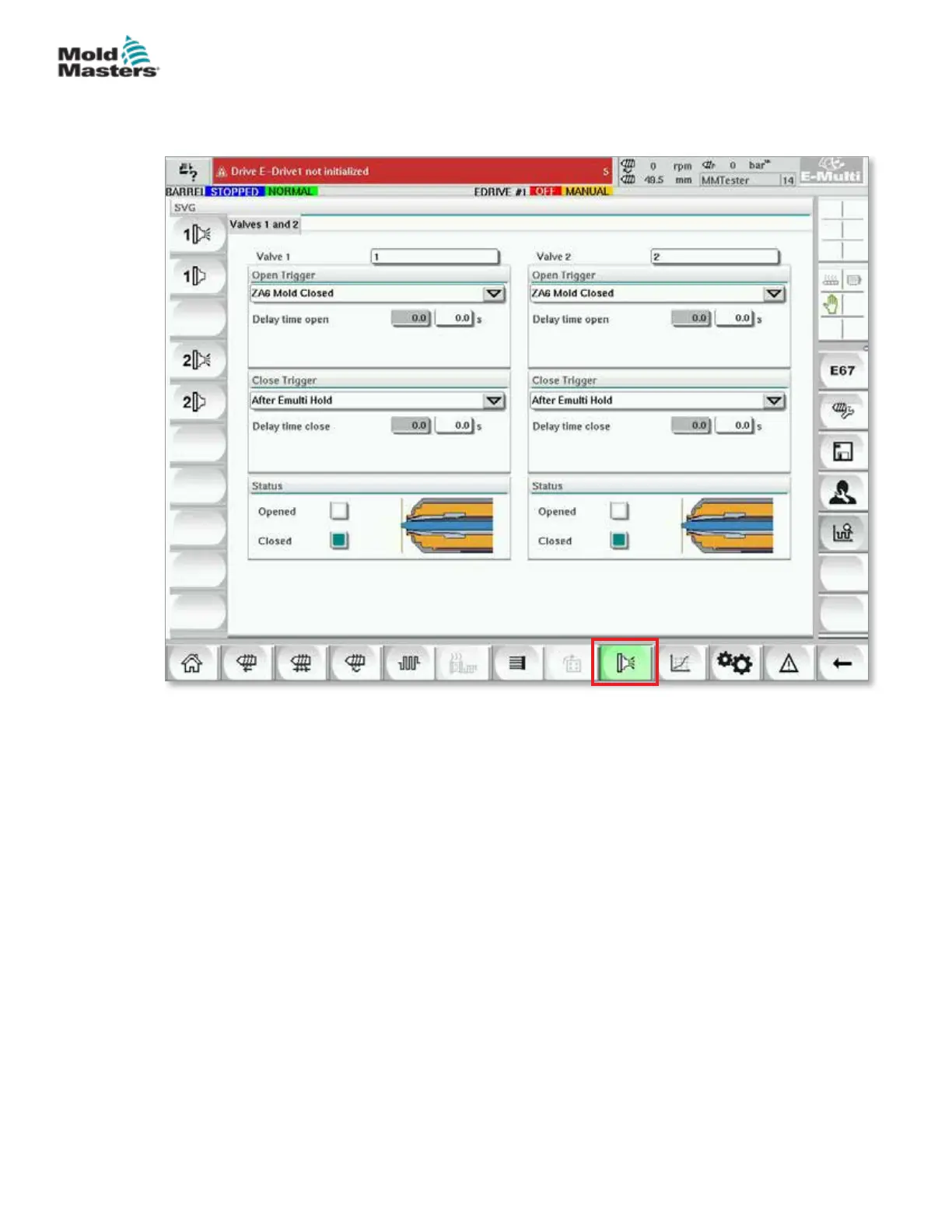

Figure 7-16 Valve gate settings screen
7-43
© 2020 Mold-Masters (2007) Limited. All Rights Reserved.
E-MULTI CONTROLLER HMI INTERFACE
E-Multi Controller User Manual
