7.18 Production Graph Screen
The Production Graph Screen provides real time data on the current
production process. Menu buttons at the bottom of the screen provide access
to other settings (Setup, Zoom, View, Tolerances, etc.).
Lower Button - Default
Production Graph View

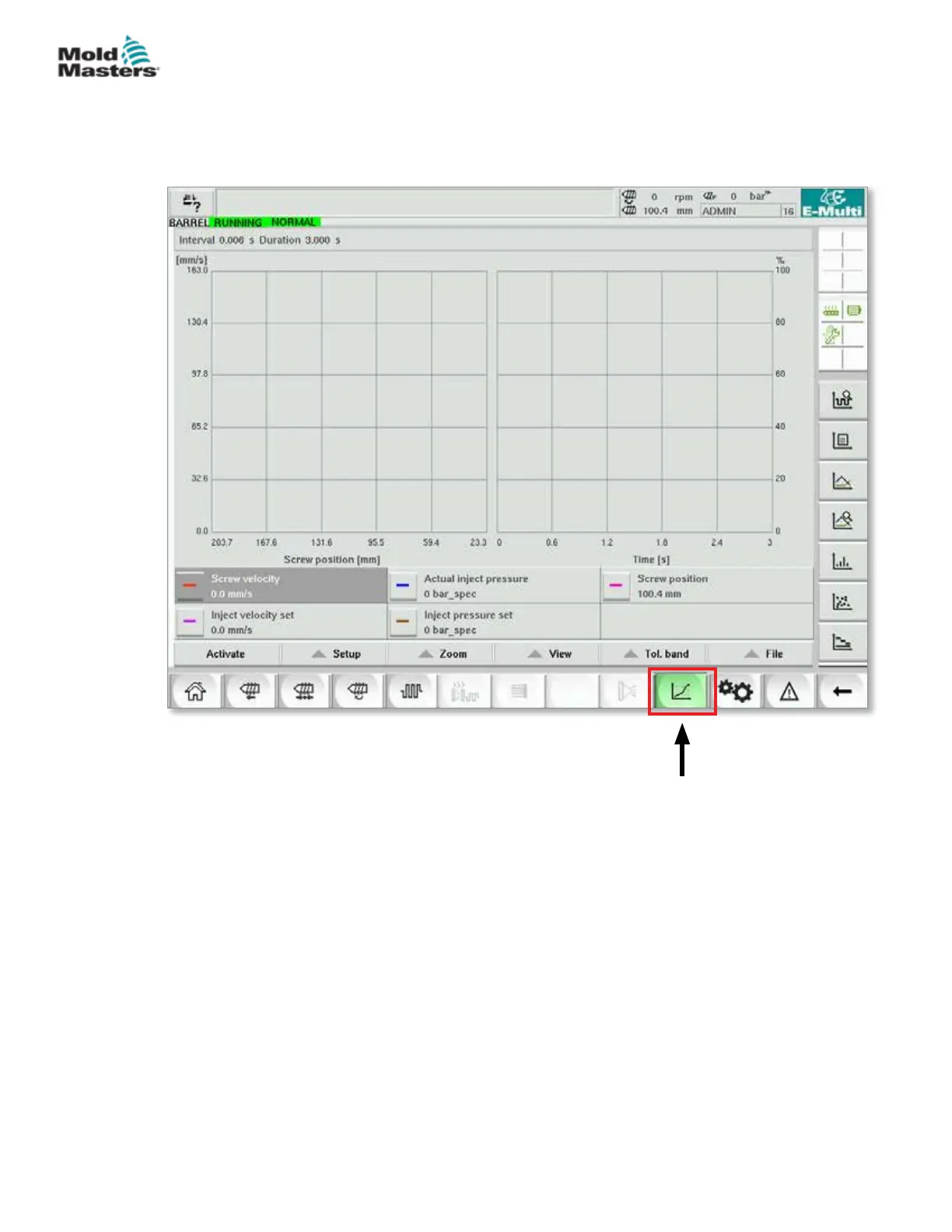

Figure 7-19 Production graph screen
