7.34 Variable Monitor Screen
CAUTION
Changing system variables may result in unexpected operation and
damage to the E-Multi that is not covered under warranty.
CAUTION
The variable monitor screen is used for viewing and modifying machine (IEC)
variables. The user may put together any variables in groups, save, observe
or modify the value of the variables group. This service screen is mainly
used for fault diagnosis and startup. The variables monitor consists of three
sections (tabs):
• Variable selection, for grouping of variables
• Variable list, for displaying selected variables
• Search result

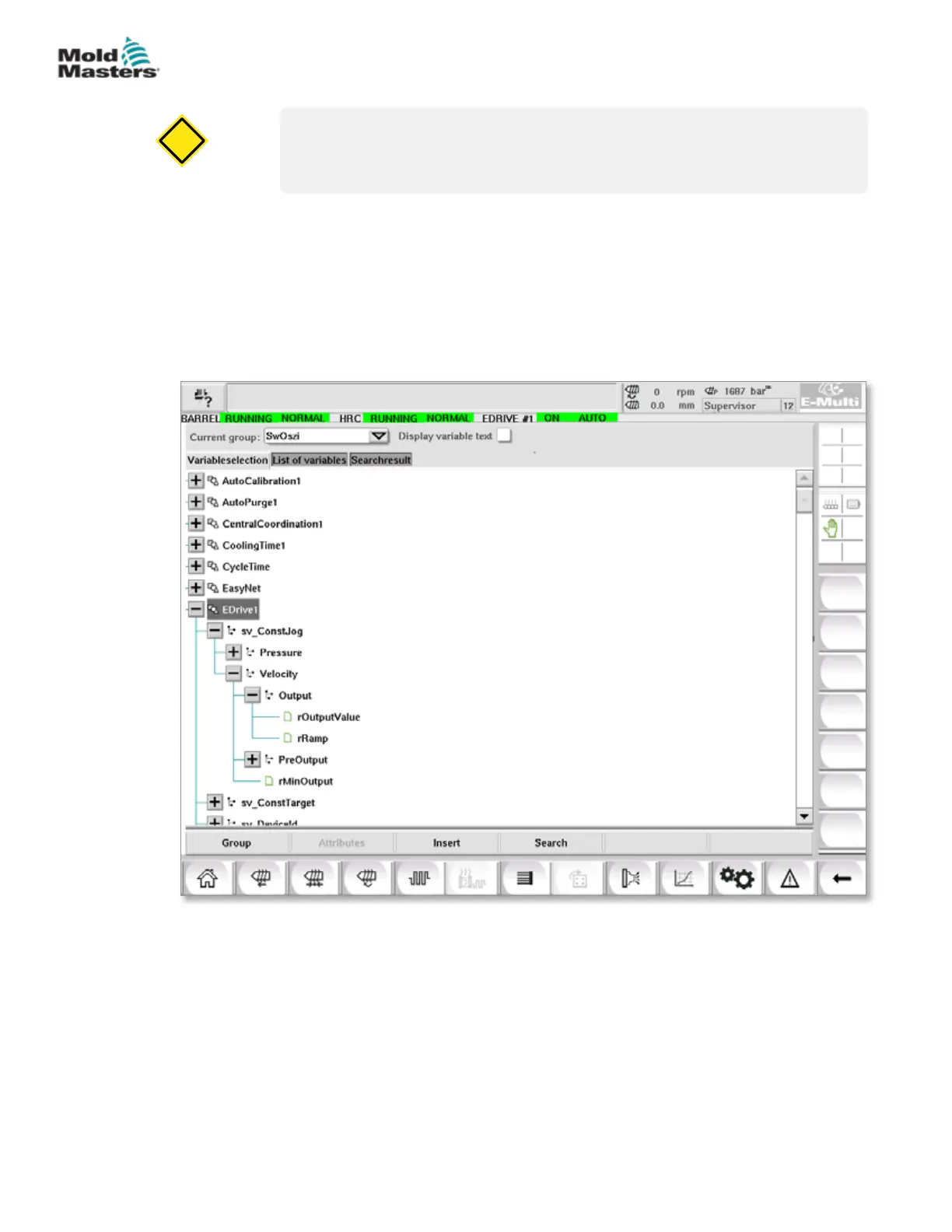

Figure 7-38 Variable monitor screen
