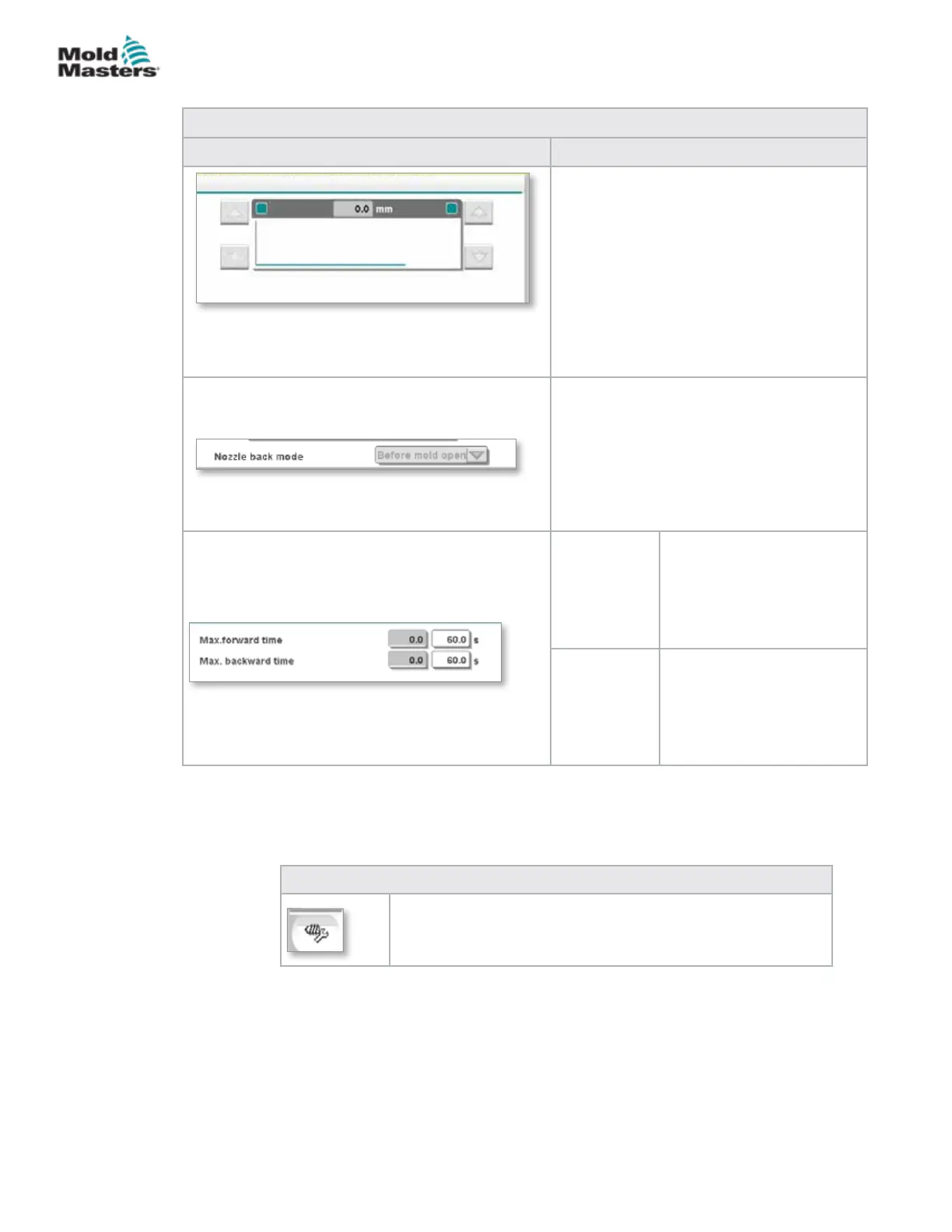

Table 7-38 E-Multi Radial / Servo Carriage Screen Components
Screen Element Description
Pressure and Velocity Input Graph
Alternatively, the Pressure (teal) and the
Velocity (grey) values are shown in the form
of prole graphs and the values can be
adjusted using the arrow keys next to the
prole graphs. On each click of the arrow,
the prole graph is adjusted by +/-5 bar
and/or +/-5%.
Contact Force
Displays current contact force to the mold.
Nozzle back mode
This selection indicates when the E-Multi
Radial / Servo Carriage will move backward
in the auto mode. There are 4 options:
Maintain forward
After inject
after plasticize
after cooling time
Max. forward
time
Maximum time for the
nozzle to reach contact
force.
If this time is exceeded an
alarm will be raised and the
cycle will be stopped.
Max.
backward
time
Maximum time for the
nozzle to reach the sprue
break position.
If this time is exceeded an
alarm will be raised and the
cycle will be stopped.
Table 7-39 E-Multi Radial / Servo Carriage Screen Context Menu Buttons
Auto Purge
See “Auto Purge Screen” on page 7-66.
E-Multi Radial / Servo Carriage Screen - continued
7-65
