10 Scope Mode
124 SRM-3006 Narda
10.1 About Scope mode
In Scope mode, the SRM-3006 measures selectively at a pre-selected
frequency and displays the result as a graph continuously versus time. The
display can be “frozen” by means of a trigger function with variable
threshold. It is also possible to make long-term measurements over periods
of up to 24 hours.
10.2 Display overview

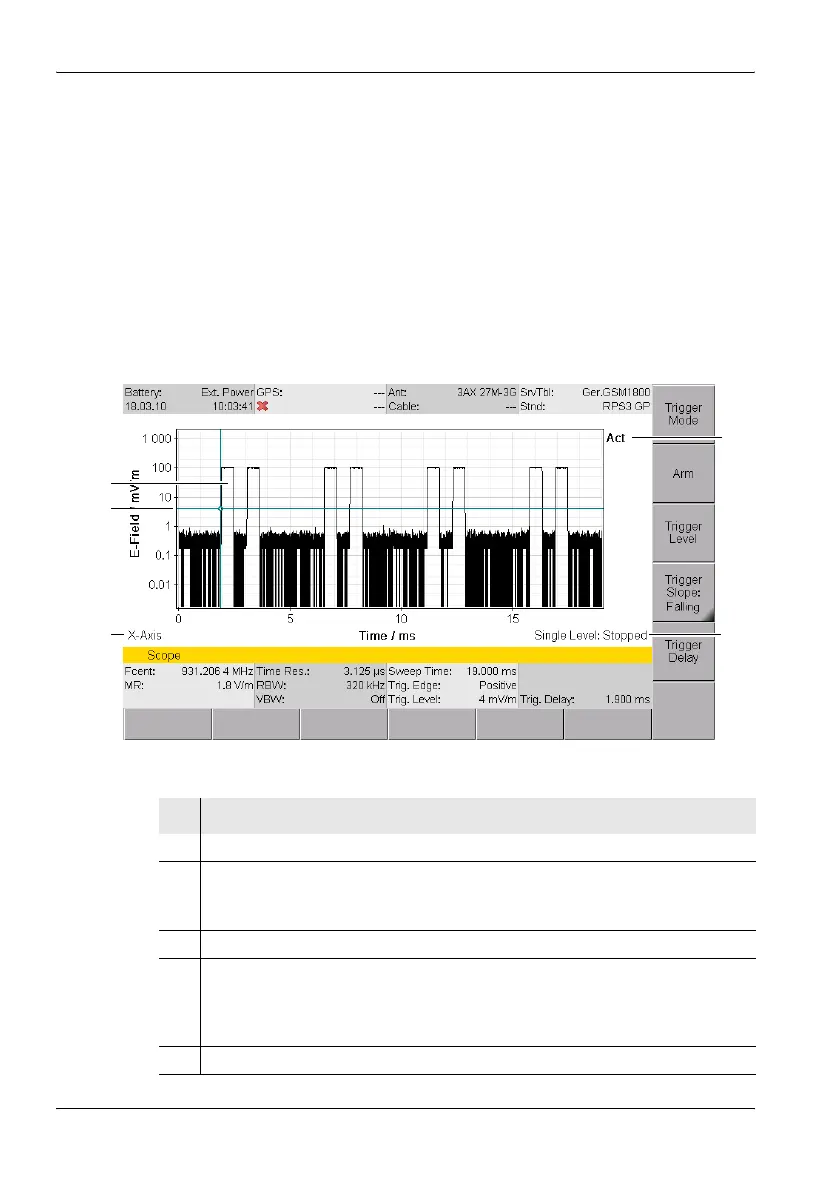

Figure 26: Scope mode with activated trigger function
1
2
4
5
3
No. Function / Explanation
1 Display of the measured signal versus time
2 Tr i gge r :
• horizontal line = Trigger Level
• vertical line = Trigger Delay
3 Axis type: X axis shown here (isotropic for long-term measurements)
4 Result type: The result type used depends on various factors, such as the
measurement period and resolution
• Act = real-time measurement
• Max/Avg/Min = averaged values
5 Measurement “frozen” by trigger function
