12 Spatial Averaging
Narda SRM-3006 151
12.4 Spatial Averaging – Discrete
Safety Evaluation • Result Type • Spatial AVG
Spectrum Analysis • Result Type • Spatial AVG
Level Recorder • Result Type • Spatial AVG
✓ You have selected the desired operating mode and made all the settings
you want.
1. Press the Result Type softkey.
ª The Result Type selection box opens.
Note: The selection of a Result Type has no relevance here, as the
SRM-3006 always uses the actual value (Act or Peak) for Spatial
Averaging regardless of the result type selected.

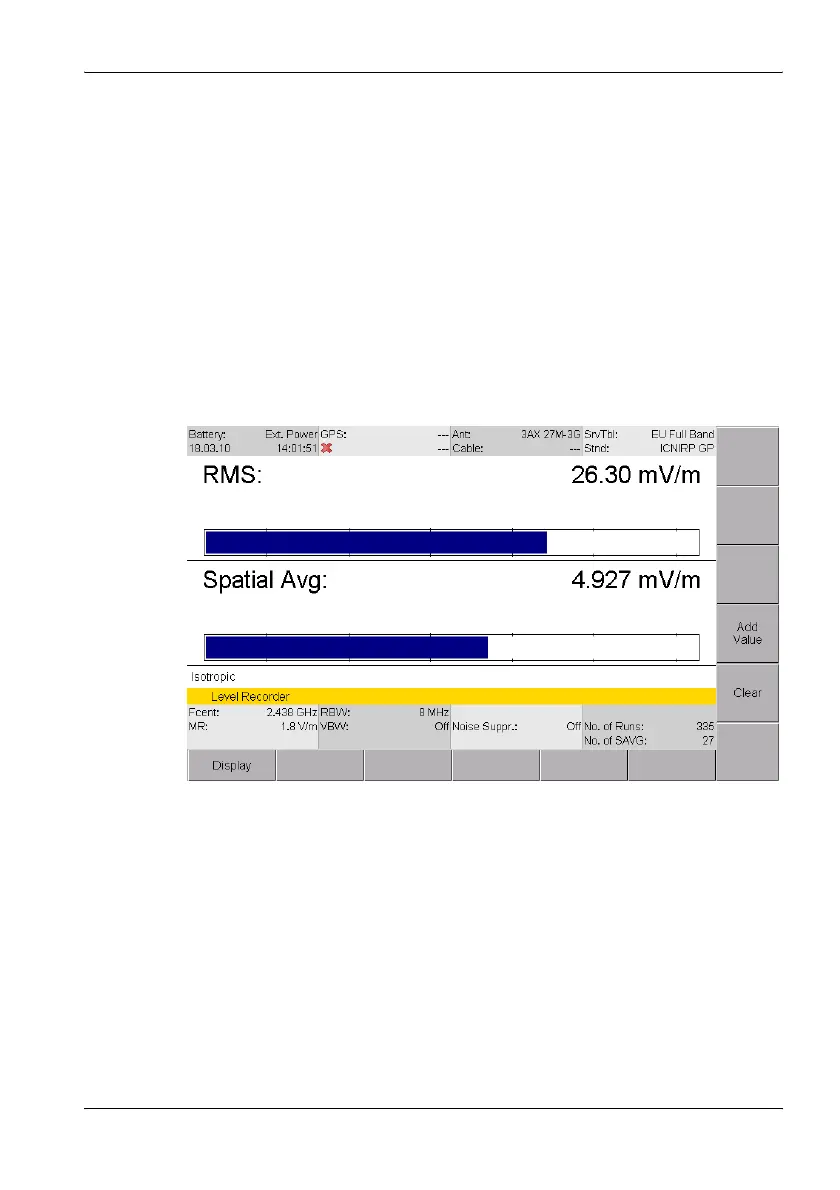

Figure 34: Example: Level Recorder • Result Type • Spatial AVG (Discrete)
2. Press the Spatial AVG Type softkey, select Discrete using the rotary
control, and press the OK key.
3. Move the antenna to the first position in the room to be measured and
press the Spatial AVG softkeys to switch the instrument so it is ready to
measure.
4. Press the Add Value softkey to start the measurement.
ª The instrument makes the measurement and confirms this with a
short beep. The number of averaged values (No. of SAVG) now
indicates 1. The instrument continues measuring in the background
(indicated by No. of Runs) but does not use these values for
determining the average.
