11 UMTS Mode
Narda SRM-3006 137
11.2 Display overview

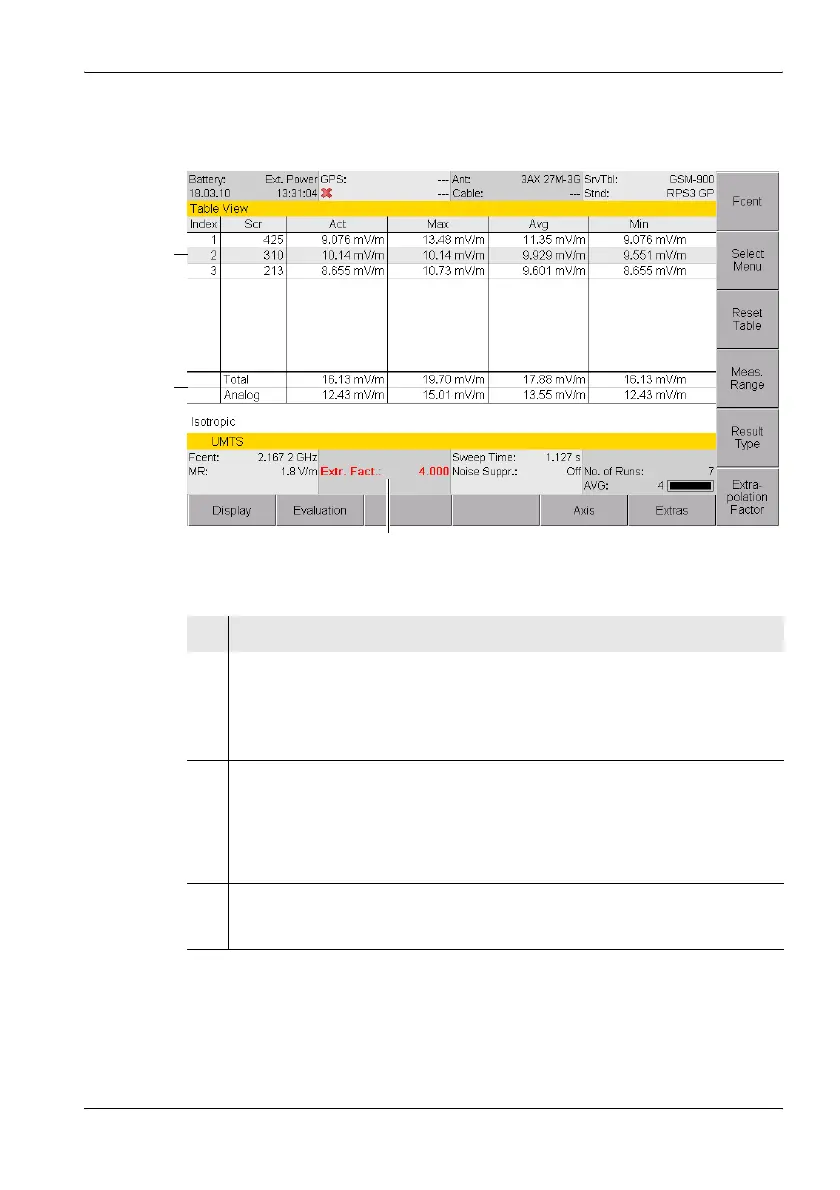

Figure 28: Measurement screen for UMTS mode
1
3
2
No. Function / Explanation
1 Table display of individual results:
• Index: Consecutive index number of scrambling codes detected
• Scr: Detected scrambling code number
• Act: Actual (instantaneous) measured value
• Max, Max Avg, ...: Other result types as selected
2 Table display of overall results:
• Total: Total result calculated from the individual results of instantaneous
measured values (Value), as well as the overall result calculated from the
stored maximum values (Max. Value)
• Analog: Result of analog field strength measurement in the selected
5 MHz UMTS frequency channel
3 Display of extrapolation factor (if used) with which the individual results and
the overall result are multiplied, but not the result of the analog field strength
measurement
