3 Connecting Up and Starting to Use the Device
34 SRM-3006 Narda
Assembly
1. Screw the antenna holder vertically or horizontally on to the tripod.
2. Attach the antenna to the holder using the Velcro strips.
3. Connect the antenna and the Basic Unit together using a cable (see
Connecting a Narda antenna to the Basic Unit using a Narda cable
on page 31).

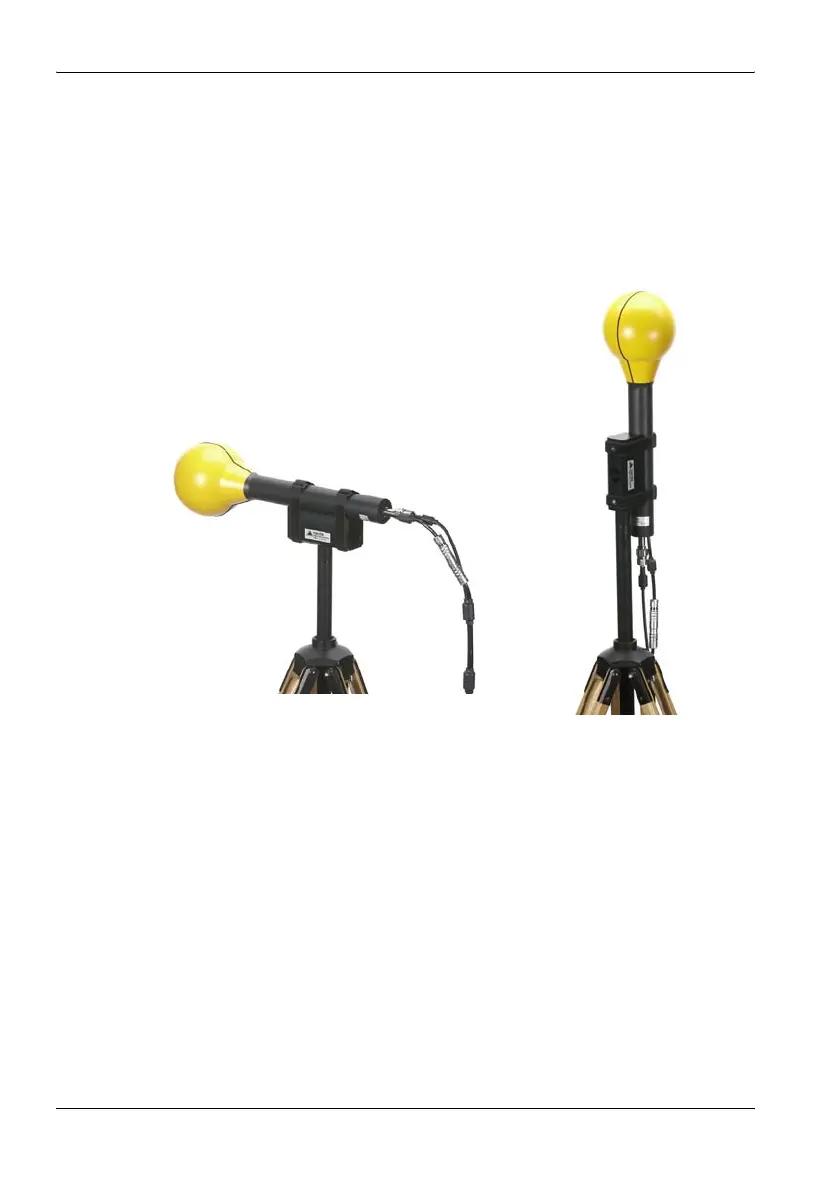

Figure 4: Antenna attached to the antenna holder for three axis (isotropic)
antennas (3501⁄90.02), assembled horizontally (left) and vertically (right)
Antenna holder for single axis and three axis antennas
This antenna holder aligns the antenna in precisely defined positions.
This covers two applications:
• Single axis antennas can be simply rotated into three mutually
perpendicular (orthogonal) positions in order to perform isotropic
measurements.
• Three axis (isotropic) antennas can be precisely aligned in order to
measure a specific single axis.
