Native Instruments MASCHINE MK3 User Manual

To assign the selected Sound slot(s) to a Choke group and set its/their Choke mode (Master or
Slave), do the following:
1. Click the Pad View button above the Sound List in the Pattern Editor to show the Pad
view for the focused Group.
2. In the Choke section click the Group value and select the desired group 1–8 from the list
or choose None (default setting) to remove the Sound from its current Choke group.
3. In the same Choke section click the Mode value (Master or Slave) to switch the Sound
between Master (default setting) and Slave mode.
4. Repeat the steps above to assign other pads to the same Choke group.
The Hi-hat is an ideal candidate for making use of Choke groups! See ↑8.4.3, Hi-hat –
Memory for more details!
Adjusting the Choke Multiple Sounds with different Choke Values
► Click the MULTI label next to Choke and select the desired value from the list to set all
selected Sounds to that same Choke group. This also applies to the Master/Slave setting
next to it.

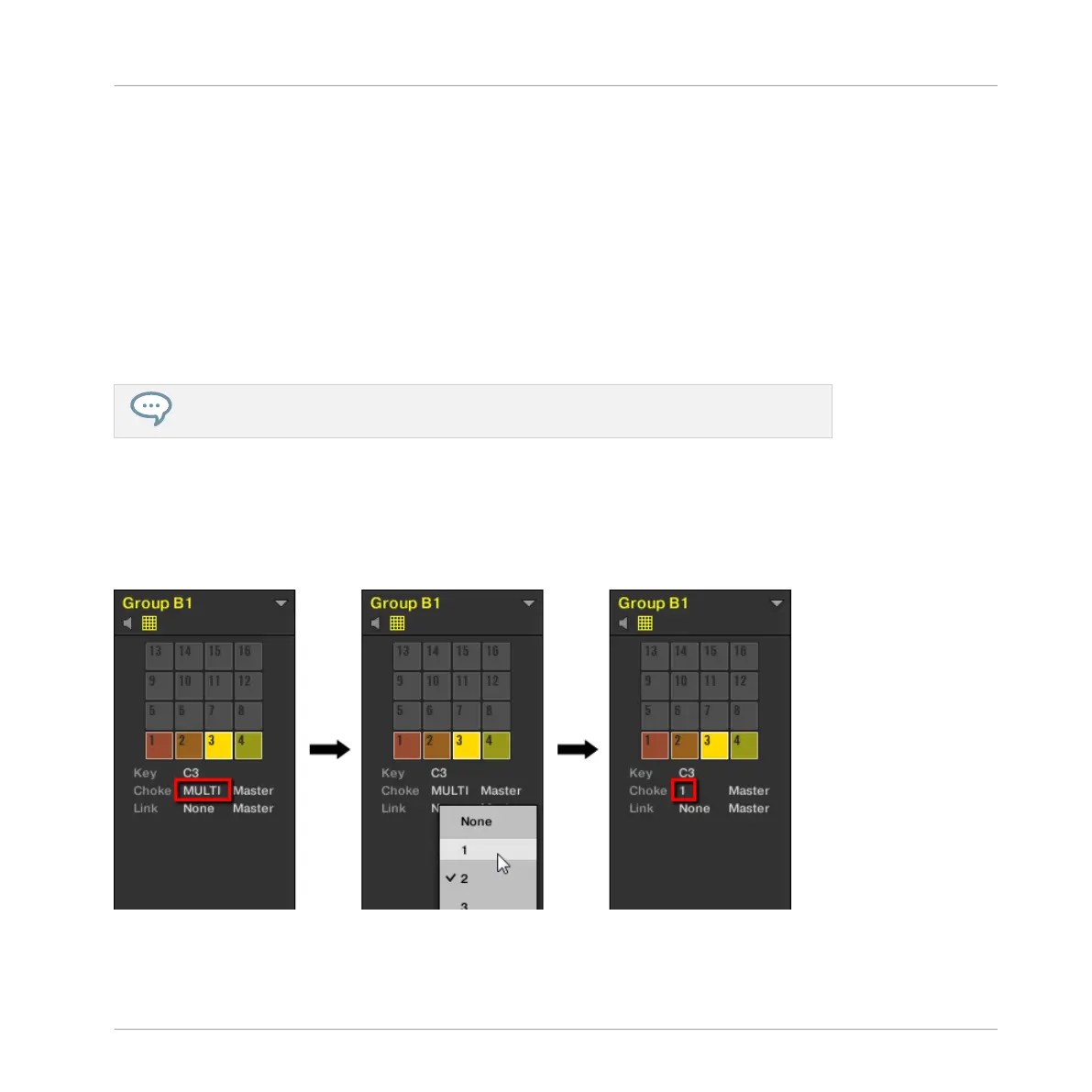

Sound slots 1 to 4 are selected. If they have different Choke values, a MULTI label appears (left). When you click it and
select a new Choke from the list (middle), this new group is applied to all selected Sounds.
Playing on the Controller
Adjusting the Pads
MASCHINE - Manual - 234

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
