Native Instruments MASCHINE MK3 User Manual

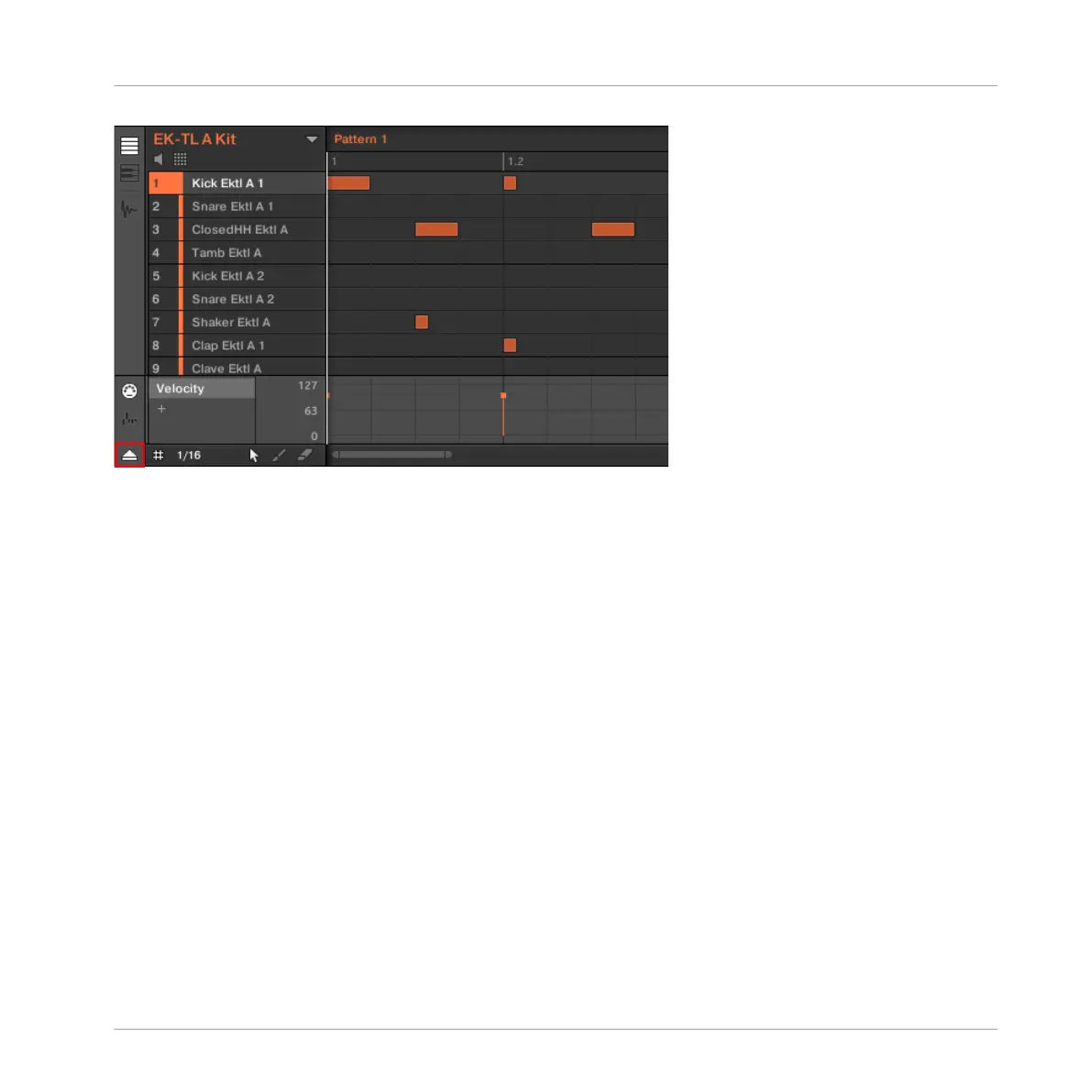

Click the arrow button at the bottom left of the Pattern Editor to show/hide the Control Lane.
2.3 Common Operations
This sections introduces a few very common operations in MASCHINE you will encounter in
numerous situations.
2.3.1 Using the 4-Directional Push Encoder
The 4-Directional Push Encoder (referred to as the Encoder) combines the functionalities of a
conventional joystick, of a button, and of a continuous encoder. These aspects make it into a
multi-functional control element that can be used for navigation, for adjusting values of param-
eters, and for controlling instruments. Hence, it can be moved to the four directions: up, down,
left, and right, as well as being pushed and rotated.
Basic Concepts
Common Operations
MASCHINE - Manual - 36

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
